Key Takeaways:
- Fraunhofer IZM has developed a groundbreaking 500-kW silicon carbide (SiC) inverter that achieves over 99% peak efficiency within a compact 1-liter volume.
- Designed for advanced 800V electric vehicle (EV) drives, this inverter boasts an unprecedented power density of 500 kVA per liter.
- The innovation stems from four integrated engineering approaches: embedded SiC MOSFET power modules, a highly efficient extruded aluminum cooler, advanced laser-welded busbar connections, and optimized NanoLam DC-link capacitors.
- This new SiC inverter technology significantly outperforms existing solutions, delivering five times the power density of common alternatives and 2.5 times that of current top-tier systems.
- The technology’s official unveiling and detailed technical presentation are scheduled for PCIM Europe in Nuremberg, June 9–11.

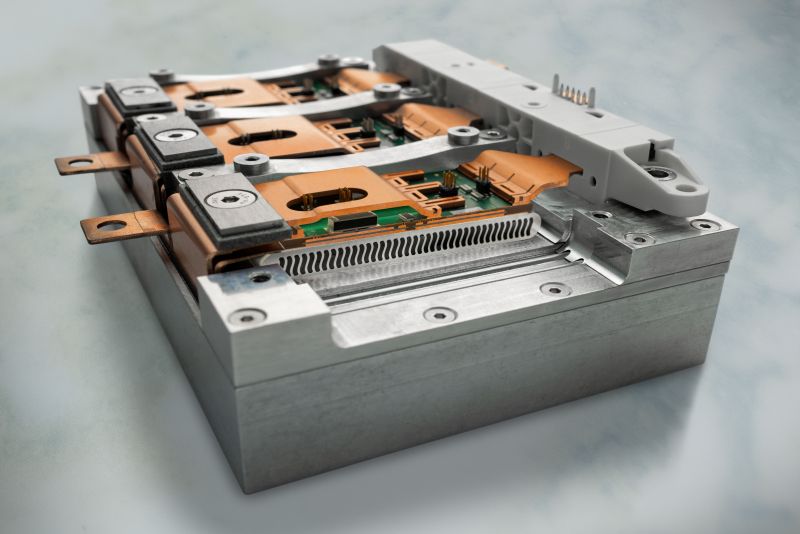

Berlin, Germany – A significant leap in electric vehicle (EV) power electronics has been announced by Fraunhofer IZM, a leading research institute in microelectronics. Researchers at the institute have successfully developed a 500-kW inverter that fits within an astonishingly compact 1-liter volume, achieving a remarkable peak efficiency exceeding 99%. This novel device is specifically engineered for high-performance 800V DC EV drives, signaling a new era for electric mobility.
The compact power converter is capable of delivering 500 A RMS per phase. Its design incorporates an effective inductance of approximately 1 nanohenry (nH) and boasts rapid switching speeds of 65 V/ns. These specifications underscore the potential for this advanced SiC inverter technology to redefine performance benchmarks in next-generation electric vehicles, offering both power and efficiency in a dramatically smaller footprint.
A Leap in Power Density and Efficiency for EV Drives
The development of this 500-kW inverter represents a monumental achievement in the field of power electronics. With a power density reaching 500 kVA per liter, the Fraunhofer IZM unit sets a new industry standard. This substantial increase in power density means that automotive manufacturers can integrate more powerful drive systems into increasingly compact spaces, leading to greater design flexibility and potentially more spacious vehicle interiors.
Beyond its compact size, the inverter’s peak efficiency exceeding 99% is particularly impactful. High efficiency directly translates to less energy loss as heat, which in turn reduces the cooling requirements of the system and extends the overall range of the electric vehicle. For 800V EV drives, which are becoming standard in high-performance and fast-charging vehicles, such efficiency gains are critical for optimizing battery life and charging infrastructure.
The Four Pillars of Innovation: Engineering a New Standard
Achieving these extraordinary performance metrics was made possible through a synergy of four distinct yet interconnected engineering approaches. Each method contributes to minimizing losses, increasing switching speeds, and reducing the overall footprint of the SiC inverter, making it a holistic design marvel.
Revolutionizing Power Modules with Embedded SiC MOSFETs
The foundation of the inverter’s high performance lies in its innovative power modules. Each of the three phases utilizes a two-level half-bridge topology, with twelve silicon carbide (SiC) MOSFETs directly embedded onto the printed circuit board (PCB). This direct embedding technique is a critical advancement.
Embedding the SiC switches eliminates conventional component height, creating an ultra-flat design. More importantly, it dramatically cuts parasitic inductance, which is a major contributor to energy losses and switching limitations in high-frequency power converters. To further enhance performance, an RC snubber is integrated between each module and the DC-link capacitor. This strategic placement helps reduce oscillations and further increases switching speed.
The resulting design achieves an impressive 1 nH effective inductance. This exceptionally low inductance allows the SiC MOSFETs to operate at their physical switching limits, facilitating faster switching. Faster switching, in turn, minimizes dynamic losses, which significantly reduces the thermal load on the system and consequently lowers cooling requirements, making the inverter more robust and reliable.
Advanced Thermal Management: The Extruded Aluminum Cooler
Effective thermal management is paramount for high-power density electronics. Fraunhofer IZM addressed this with an innovative cooler design. Beneath the three power modules lies a flat, extruded aluminum heat sink. This heat sink is meticulously engineered with more than 40 thin, slightly corrugated channels.
This intricate channel design maximizes the surface area available for heat exchange with the coolant, ensuring highly efficient heat dissipation from the SiC inverter. The entire heat sink is produced in a single extrusion step, a manufacturing choice that not only minimizes production costs but also contributes significantly to the inverter’s remarkably small form factor. This approach highlights a balance between performance and manufacturability.
Optimizing Inductance with Innovative Busbar Connections
The method of connecting the busbars within the inverter also plays a crucial role in its performance. Traditional screw connections can introduce undesirable inductance and occupy valuable space. Fraunhofer IZM circumvented these issues with a novel approach.
Wiljan Vermeer of Fraunhofer IZM’s Power Electronic Systems group explained, “The contacts of the busbars were formed just so that we could laser-weld them directly onto the circuit board. That means we could get rid of screws that would not only eat up valuable space but increase inductance as well.” This laser-welding technique creates extremely low-inductance connections and saves critical volume.
Furthermore, the two input busbars are arranged vertically and positioned close enough to each other that their magnetic fields partially cancel out. This ingenious spatial arrangement further reduces the overall inductance of the system, optimizing power flow and efficiency within the SiC inverter.
High-Performance DC-Link Capacitors from PolyCharge
The fourth critical element involves the DC-link capacitors, developed in collaboration with PolyCharge. The team utilized NanoLam capacitors, which were specifically configured to meet the demanding requirements of this application. These capacitors are strategically arranged alongside the busbars, contributing to the inverter’s compact design.
This configuration results in a total DC-link inductance of 2 nH at 300 microfarads of capacitance. While NanoLam capacitors are known for producing higher thermal losses compared to conventional types, the Fraunhofer team engineered a solution to manage this. They incorporated copper contacts for enhanced heat dissipation and seamlessly integrated the capacitor unit into the casing directly below the aluminum cooler.
This integrated thermal management approach for the capacitors limits their operating temperature to 130 °C, well within their maximum permissible temperature of 150 °C. This careful design ensures the long-term reliability and performance of the critical DC-link section of the SiC inverter.
Setting a New Benchmark in EV Power Electronics
The culmination of these innovative engineering strategies places Fraunhofer IZM’s new SiC inverter at the forefront of power electronics for electric vehicles. The resulting unit significantly outperforms existing alternatives in the market.
According to Fraunhofer, the inverter achieves five times the power density of common inverter alternatives currently available. Moreover, it surpasses even current top-performing systems by a factor of 2.5. This substantial performance advantage translates into significant implications for future electric vehicle designs.
A more compact and efficient inverter allows for lighter vehicles, longer driving ranges, and potentially lower manufacturing costs. It enables automotive engineers to push the boundaries of EV performance, acceleration, and charging capabilities, directly benefiting consumers with superior electric vehicle products.
Global Showcase: Presentation at PCIM Europe
The technical details and full capabilities of this groundbreaking SiC inverter will be formally presented to the international power electronics community. Wiljan Vermeer, a key researcher from Fraunhofer IZM’s Power Electronic Systems group, is slated to introduce the inverter at PCIM Europe.
The prestigious event will take place in Nuremberg from June 9–11, offering engineers, academics, and industry leaders an in-depth look at the technology that promises to shape the future of electric vehicle drives and power conversion systems. This presentation is highly anticipated, given the significant performance figures already announced.
Conclusion: Paving the Way for Future EVs
Fraunhofer IZM’s latest innovation represents a pivotal moment in the evolution of electric vehicle technology. By combining cutting-edge SiC components with novel design and integration techniques, they have engineered an inverter that sets unprecedented standards for power density and efficiency. This development not only enhances the performance and practicality of current 800V EV drives but also lays a robust foundation for the next generation of electric vehicles.
The advancements in embedded power modules, thermal management, busbar design, and capacitor integration collectively underscore a comprehensive engineering triumph. As the automotive industry continues its rapid transition towards electrification, breakthroughs like this SiC inverter technology are crucial in making electric vehicles more accessible, efficient, and appealing to a global audience.
Source: Fraunhofer IZM
Frequently Asked Questions (FAQ)
What is the primary breakthrough of Fraunhofer IZM’s new inverter?
The primary breakthrough is a 500-kW SiC inverter that achieves over 99% peak efficiency within a mere 1-liter volume. This design offers an exceptionally high power density of 500 kVA per liter, significantly advancing power electronics for electric vehicles, particularly 800V drives.
How does the inverter achieve such high efficiency and compactness?
It achieves this through four integrated approaches: embedding SiC MOSFETs directly onto the PCB, utilizing an advanced extruded aluminum heat sink for cooling, employing laser-welded busbar connections to reduce inductance, and integrating specially configured NanoLam DC-link capacitors.
What are SiC MOSFETs and why are they important for this technology?
Silicon Carbide (SiC) MOSFETs are advanced semiconductor devices superior to traditional silicon. They offer higher power density, faster switching speeds, and greater efficiency at high temperatures. In this inverter, their direct embedding minimizes parasitic inductance and maximizes switching performance, leading to lower losses.
What role does thermal management play in the inverter’s design?
Efficient thermal management is critical for the inverter’s performance and longevity. A flat, extruded aluminum heat sink with over 40 corrugated channels provides a large surface area for heat exchange, effectively dissipating heat from the SiC MOSFETs and integrated NanoLam capacitors, despite the high power density.
How does this new inverter compare to existing solutions in the market?
Fraunhofer IZM states that their SiC inverter technology outperforms common alternatives by five times in power density. It also beats current top-tier systems by 2.5 times, establishing a new benchmark for efficiency and compactness in electric vehicle power electronics.
What are the potential benefits of this technology for electric vehicles?
This innovation promises several benefits for EVs, including lighter vehicle designs, increased driving range due to higher efficiency, faster charging capabilities, and potentially lower manufacturing costs. It enables more powerful and compact electric powertrains, enhancing overall EV performance and appeal.
Who developed the DC-link capacitors used in the inverter?
The DC-link capacitors, crucial for managing the electrical energy flow, were developed in collaboration with PolyCharge. They specifically utilized NanoLam capacitors, which were customized for this high-power application and integrated into the inverter’s compact architecture alongside the busbars.
