Key Takeaways (TL;DR)
- Integrated Testing: comemso’s Easy Chester Ultimate consolidates functional, communication, and electrical safety testing for EV charging infrastructure into a single mobile unit.
- Streamlined Operations: The system eliminates the need for multiple instruments, offering a unified operating concept and documentation process for enhanced efficiency.
- Comprehensive Capabilities: It supports AC, DC CCS, CHAdeMO, and NACS charging stations, covering critical communication protocols and a wide range of electrical safety measurements.
- Field-Ready Design: Weighing 15.7 kg and featuring a 10.1-inch touchscreen, the device is built for on-site commissioning, maintenance, repair, and periodic inspections.
- Detailed Reporting & Diagnostics: Users can generate configurable PDF reports, email results, and benefit from advanced diagnostics that pinpoint the root cause of charging issues.
comemso electronics, a prominent name in testing solutions, has introduced a groundbreaking mobile test system poised to redefine the efficiency and accuracy of electric vehicle (EV) charging infrastructure diagnostics. The new offering, dubbed Easy Chester Ultimate, integrates functional testing, sophisticated charging communication analysis, and essential electrical safety testing into one portable unit.
This innovative consolidation marks a significant advancement for the burgeoning EV market. Historically, professionals tasked with ensuring the reliability and safety of EV charging infrastructure often relied on an array of separate instruments, each with its own operational intricacies and documentation requirements. The Easy Chester Ultimate aims to streamline these complex processes, presenting a cohesive solution for the industry.
Transforming On-Site Diagnostics for EV Charging Infrastructure
The rise of electric vehicles necessitates a robust and dependable charging network. As the global EV charging infrastructure continues its rapid expansion, the demand for precise and efficient testing, maintenance, and certification tools has become paramount. The Easy Chester Ultimate directly addresses this need, offering a multifaceted approach to validating charging station performance.

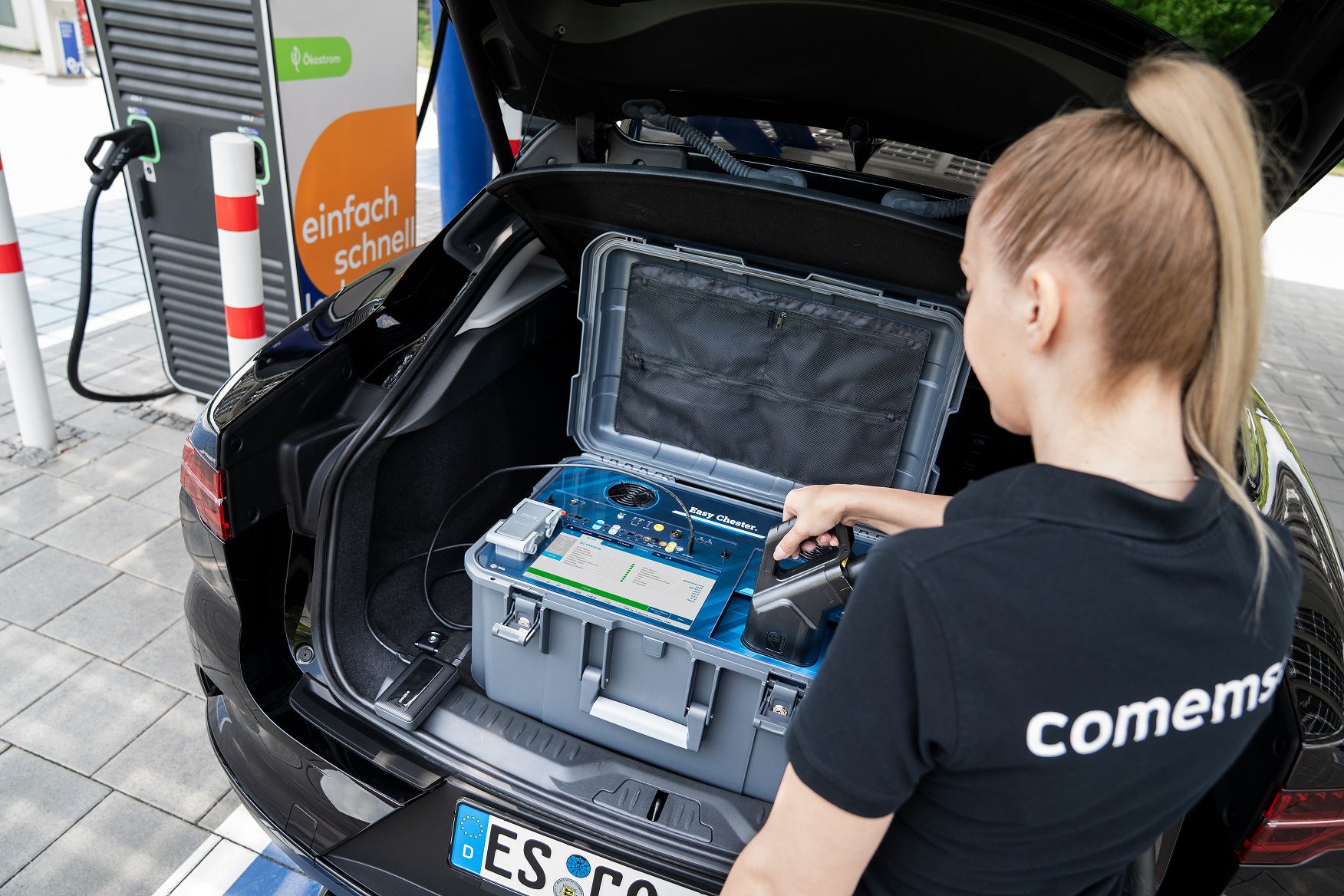

Designed with field technicians and service providers in mind, the 15.7 kg unit is specifically engineered for critical tasks such as the commissioning of new charging points, routine maintenance checks, post-repair verification, and periodic safety inspections directly at the charging station site. Its robust design ensures reliability in diverse environmental conditions encountered in the field.
User-Centric Design for Enhanced Field Operations
Ease of use is a cornerstone of the Easy Chester Ultimate’s design. A large, intuitive 10.1-inch touchscreen serves as the primary interface, guiding users through each step of the testing process. This streamlined user experience is crucial for reducing training time and minimizing potential errors during complex diagnostic procedures.
All measurements, intricate communication sequences, and comprehensive test results are automatically recorded. This critical data is then compiled into configurable PDF reports, offering a standardized and easily shareable format for documentation. This eliminates the manual collation often associated with multiple disparate testing tools, thereby boosting operational efficiency.
Comprehensive Testing Capabilities Across Multiple Standards
The Easy Chester Ultimate’s versatility is evident in its ability to test a wide spectrum of charging station types and protocols. Depending on its specific configuration, the system can thoroughly assess AC, DC CCS, and CHAdeMO stations, ensuring broad applicability across different regions and EV models.
The testing regimen is structured across three crucial levels: functional operation, charging communication, and electrical safety. This layered approach allows for a holistic evaluation, crucial for maintaining the high standards required for modern EV charging infrastructure.
Advanced Charging Communication Analysis
Effective communication between an electric vehicle and its charging station is fundamental for a successful and safe charging session. The Easy Chester Ultimate excels in this domain, providing in-depth analysis of key communication aspects. It meticulously checks Control Pilot (CP) and Proximity Pilot (PP) signaling, which are vital for basic charging control and safety.
Furthermore, the system delves into PLC (Power Line Communication) including SLAC (Signal Level Attenuation Characterization), ensuring the integrity of high-level digital communication. It analyzes digital charging communication under globally recognized standards such as DIN 70121, ISO 15118-2, and ISO 15118-3. These standards govern the secure and intelligent communication between the vehicle and the Electric Vehicle Supply Equipment (EVSE), facilitating features like Plug & Charge and smart grid integration.
A distinctive feature of the system is its ability to simulate defined faults on the CP, PP, and PE (Protective Earth) lines. This allows technicians to rigorously verify how a charging station responds to potential insulation faults or other communication anomalies, a critical aspect of predictive maintenance and safety validation.
Ensuring Robust Electrical Safety
Electrical safety is paramount in any power delivery system, especially within EV charging infrastructure where high voltages and currents are involved. The Easy Chester Ultimate provides extensive electrical safety testing, covering both the grid-side connection and the vehicle-facing interface.
Depending on the test direction and configuration, the unit performs a comprehensive suite of measurements. These include protective conductor resistance, which ensures a reliable path for fault currents; insulation resistance, to prevent current leakage; and residual voltage, to confirm safe discharge after disconnection. It also rigorously tests Residual Current Devices (RCDs) and Insulation Monitoring Devices (IMDs), critical components designed to detect and interrupt hazardous currents.
Additionally, the system measures loop impedance to verify the effectiveness of protective devices, alongside precise voltage and current measurements to confirm proper power delivery. This exhaustive approach to safety testing contributes significantly to the trustworthiness and operational integrity of charging stations.
Adherence to Global Charging Standards and Protocols
The global EV ecosystem is characterized by a variety of charging standards. The Easy Chester Ultimate is designed to be compatible with this diverse landscape, supporting a range of AC and DC charging interfaces depending on its configuration. This includes AC Type 1 and Type 2, CCS Combo 1 and Combo 2, NACS (North American Charging Standard) under SAE J3400, and CHAdeMO.
Its protocol coverage is equally comprehensive, encompassing IEC 61851-1, which defines general requirements for EVSE; DIN 70121, for digital communication; and ISO 15118-2 and ISO 15118-3, which further specify advanced communication functionalities. This broad support ensures that the system is a future-proof investment for testing an evolving EV charging infrastructure.
Simplified Workflow and Advanced Diagnostic Capabilities
The operational workflow of the Easy Chester Ultimate is designed for maximum efficiency, guiding the user through a logical four-step process. First, the technician connects the unit to both the charging station and the electrical grid. Next, they select the appropriate charging standard and the specific test routine required.
The system then autonomously runs the selected safety, functional, and communication checks. Finally, the user can analyze any deviations or anomalies detected and meticulously document the results. This structured approach minimizes guesswork and ensures all critical checks are performed systematically.
Beyond basic testing, the system provides powerful diagnostic capabilities. By consolidating the three levels of testing—electrical safety, charging communication, and functional performance—comemso asserts that the Easy Chester Ultimate empowers users to swiftly identify the precise origin of any deviation. This could be an issue with the electrical installation, a communication breakdown, a malfunction in protection functions, or a general anomaly in charging behavior.
Enhanced Field Usability with Modern Features
Reports generated by the device are exported to configurable PDF documents, which can then be conveniently emailed directly from the unit. This capability enhances communication and record-keeping, allowing for immediate sharing of results with stakeholders or central maintenance teams.
To further support field operations, the Easy Chester Ultimate features wireless firmware updates, ensuring the device always has the latest testing protocols and functionalities. Integrated device checks contribute to the unit’s self-diagnostic capabilities, while optional remote support offers an additional layer of assistance for technicians facing complex issues. These features collectively contribute to minimizing downtime and maximizing the operational readiness of EV charging infrastructure.
Broad Applications and Future-Ready Extensions
The versatility of the Easy Chester Ultimate makes it suitable for a wide array of typical applications within the EV charging sector. These include, but are not limited to, the initial commissioning of new charging points to ensure they meet all regulatory and operational standards. It is also invaluable for functional checks conducted after routine maintenance or significant repair work, guaranteeing restored performance.
For diagnosing elusive charging and communication problems, the system offers granular insights that can quickly pinpoint root causes, reducing troubleshooting time. Verification of electrical protection functions is another critical application, ensuring the safety mechanisms of the charging station are fully operational. Furthermore, it is an ideal tool for periodic inspections required by various regulations to maintain ongoing compliance and safety.
To cater to evolving testing requirements, comemso offers optional extensions for the Easy Chester Ultimate. A Long Duration Unit can be added to facilitate extended charging cycles and enable the analysis of time-dependent faults, which might not manifest during shorter test runs. For scenarios requiring higher power testing over longer durations, external DC loads can be integrated, providing comprehensive evaluation capabilities for advanced EV charging infrastructure.
In a rapidly electrifying world, tools like the Easy Chester Ultimate are not just beneficial; they are essential for building a reliable, safe, and efficient EV charging infrastructure. The system’s integrated approach simplifies complex testing procedures, empowering technicians to maintain the performance and safety of charging stations with unprecedented efficiency.
Frequently Asked Questions (FAQ)
What is the comemso Easy Chester Ultimate?
The Easy Chester Ultimate is a mobile test system for EV charging infrastructure, combining functional testing, charging communication analysis, and electrical safety testing into a single portable unit. It is designed to streamline the commissioning, maintenance, and repair of charging stations.
What types of charging stations can it test?
The system is configurable to test AC, DC CCS, and CHAdeMO charging stations. It also supports AC Type 1 and Type 2, CCS Combo 1 and Combo 2, NACS (SAE J3400), and CHAdeMO interfaces, covering a broad range of global charging standards.
How does it improve testing efficiency?
By consolidating three distinct testing levels into one device, the Easy Chester Ultimate eliminates the need for multiple instruments and different operating concepts. This integration streamlines workflow, reduces setup time, and simplifies documentation with configurable PDF reports.
What communication protocols does it analyze?
It checks Control Pilot and Proximity Pilot signaling, PLC communication (including SLAC), and analyzes digital charging communication under DIN 70121, ISO 15118-2, and ISO 15118-3. This ensures comprehensive validation of the vehicle-to-charger communication.
What electrical safety aspects does it cover?
The system measures protective conductor resistance, insulation resistance, residual voltage, and tests Residual Current Devices (RCDs) and Insulation Monitoring. It also assesses loop impedance, voltage, and current to ensure both grid-side and vehicle-facing interfaces meet safety standards.
Is the device portable for field use?
Yes, weighing 15.7 kg, the Easy Chester Ultimate is built for portability. Its robust design and 10.1-inch touchscreen make it ideal for on-site commissioning, maintenance, repair, and periodic inspections directly at EV charging points.
Can it help diagnose the root cause of issues?
Absolutely. By integrating functional, communication, and electrical safety tests, the system allows users to identify whether a deviation originates from the electrical installation, charging communication, protection functions, or general charging behavior, facilitating quicker fault resolution.
Are there any optional extensions available?
Yes, optional extensions include a Long Duration Unit for analyzing time-dependent faults during longer charging cycles and external DC loads for testing at higher charging power over extended periods, enhancing the system’s versatility for advanced testing scenarios.
