Key Takeaways:
- NOVOSENSE has introduced the SP301H/L series, innovative three-channel digital isolators leveraging third-generation capacitive isolation technology.
- These new components are designed to directly replace up to three traditional optocouplers and associated passive components in RS485 communication links, significantly reducing PCB area and bill of materials (BOM).
- The SP301H/L offers superior performance with data rates up to 8 Mbps and robust protection features, including 5 kVrms withstand voltage and 10 kV surge capability, meeting reinforced insulation standards.
- Key advantages over optocouplers include extended service life due to the absence of wear-out mechanisms, enhanced power-supply noise immunity, and a compact SSOW10 package.
- Targeting demanding applications in industrial automation, power meters, and energy storage systems, the new series improves reliability and system longevity.
BENGALURU, India – In a significant advancement for industrial communication infrastructure, NOVOSENSE Microelectronics has unveiled its latest innovation, the SP301H/L family of three-channel digital isolators. Engineered on the company’s advanced third-generation capacitive isolation technology, these new components are poised to redefine the landscape of RS485 communication links by offering a highly integrated, robust, and efficient alternative to conventional isolation methods.
The SP301H/L series directly addresses a long-standing challenge in isolated RS485 designs: the reliance on multiple optocouplers and their supporting passive components. By consolidating three isolation channels onto a single chip, NOVOSENSE’s solution promises substantial reductions in board space, complexity, and overall system cost, setting a new benchmark for digital isolators for RS485 applications.
Revolutionising RS485 Communication with Integrated Digital Isolators
The demand for reliable and efficient data transmission in diverse industrial environments, from factory automation to smart grids, is ever-growing. RS485, a widely adopted serial communication standard, plays a crucial role in connecting devices across varying distances and electrical potentials. However, ensuring data integrity and system safety in such environments often necessitates robust galvanic isolation to mitigate ground potential differences and transient surges.
NOVOSENSE’s SP301H/L digital isolators emerge as a compelling answer to these critical needs. The integration of three distinct isolation channels into a single device marks a pivotal step forward, enabling designers to simplify board layouts and enhance the overall reliability of their RS485-based systems. This innovation directly translates into tangible benefits for manufacturers grappling with space constraints and performance demands.
Overcoming the Limitations of Traditional Optocouplers
For decades, optocouplers have been the go-to solution for galvanic isolation, relying on light-emitting diodes (LEDs) and photodetectors to transfer signals across an isolation barrier. While effective, optocoupler-based designs come with inherent drawbacks that impact long-term system performance and maintenance. One of the most significant challenges is the degradation of the LED’s light output over time.
This degradation, a wear-out mechanism intrinsic to optocouplers, can lead to a gradual shift in timing characteristics and, eventually, a limited service life for the entire isolated link. Furthermore, achieving multi-channel isolation with optocouplers typically requires multiple discrete components, increasing the bill of materials (BOM) and demanding more printed circuit board (PCB) area, along with complex routing.
In contrast, the SP301H/L leverages NOVOSENSE’s third-generation capacitive isolation technology. This advanced approach transmits signals across an isolation barrier using electric fields, entirely circumventing the optical degradation issues associated with optocouplers. The absence of such wear-out mechanisms ensures a significantly longer and more predictable service life for digital isolators for RS485 systems, enhancing the longevity and stability of critical industrial equipment.
Advanced Performance and Robustness for Demanding Applications
Beyond component consolidation and extended longevity, the SP301H/L series delivers a compelling suite of performance enhancements designed to meet the rigorous demands of modern industrial and energy systems.
Optimised Speed and Flexibility for Modern MCUs
The new isolators boast impressive data transmission capabilities. The primary data channel operates at speeds up to 8 Mbps, facilitating high-throughput communication essential for real-time control and monitoring. The enable control channel also performs efficiently at speeds up to 1 Mbps, which is notably faster than what typical optocoupler-based RS485 isolation solutions can achieve.
Design flexibility is further enhanced by offering two enable-logic options. The SP301H variant features a default-high enable pin, while the SP301L comes with a default-low pin. This choice allows designers to seamlessly integrate the isolator with various microcontroller (MCU) enable logic configurations, streamlining the design process and reducing the need for additional interface circuitry.
Compact Footprint and Enhanced Power Efficiency
Space optimisation on PCBs is a critical consideration in almost all electronic designs, particularly in compact industrial modules and field instruments. The SP301H/L comes in a compact SSOW10 wide-body package with fine-pitch leads. NOVOSENSE asserts that this design significantly reduces the required PCB area by more than 60% compared to traditional optocoupler-based solutions that would otherwise necessitate three discrete components.
The operational efficiency of the device is equally impressive. With an ambient operating temperature range extending from a chilling –40° C to a scorching 125° C, the SP301H/L is engineered to perform reliably in extreme industrial conditions. Furthermore, its low quiescent current makes it an ideal choice for battery-powered field instruments, where power efficiency is paramount to extending operational time and reducing maintenance cycles.
Unmatched Robustness and Reliability in Harsh Environments
Industrial settings are often characterised by high electrical noise, voltage transients, and potential surge events. Ensuring robust protection against these phenomena is a non-negotiable requirement for isolated interfaces. The SP301H/L series excels in this regard, supporting a withstand voltage of up to 5 kVrms for one minute, a crucial specification for guaranteeing safety and operational integrity.
Its surge capability, exceeding 10 kV, provides exceptional protection against sudden, high-energy voltage spikes, ensuring that connected equipment remains functional and undamaged. These robust specifications mean the new digital isolators for RS485 applications meet stringent reinforced insulation requirements, a testament to their reliability in safety-critical systems.
Common-mode transient immunity (CMTI) is another vital metric for isolators operating in electrically noisy environments. The SP301H/L achieves a typical CMTI of 200 kV/μs, indicating its superior ability to reject large, fast-changing voltage transients that can otherwise corrupt data signals. This high CMTI ensures stable and error-free communication even amidst significant common-mode noise.
Improvements Over Predecessor Models
Building on its legacy of innovation, NOVOSENSE has also engineered several key improvements in the SP301H/L series compared to its previous SP301A and NIRS31 digital isolator models. The electrical overstress (EOS) tolerance has been enhanced by approximately 10%, offering greater resilience against fault conditions that could otherwise damage the device.
Latch-up immunity remains robust, maintained above 10 V, providing critical protection against parasitic effects that can lead to device failure. Crucially, the company also highlights improved power-supply noise immunity. This enhancement ensures that communication remains error-free even under the presence of high-frequency, high-amplitude system noise, often encountered in the MHz range within complex industrial machinery.
NOVOSENSE’s Isolation+ Portfolio: A Holistic Approach
The SP301H/L is strategically positioned within NOVOSENSE’s broader Isolation+ line, a comprehensive portfolio designed to address various isolation needs across different applications. This line encompasses a wide array of products, including digital isolators, isolated sensors, interfaces, power supplies, and gate drivers.
This holistic approach underscores NOVOSENSE’s commitment to providing complete, high-performance isolation solutions that simplify design, improve system reliability, and meet stringent safety standards. The new RS485 digital isolators exemplify this commitment by integrating advanced technology into a highly practical and beneficial component.
Impact on Industrial Automation and Energy Storage
The implications of the SP301H/L for industries relying on RS485 communication are significant. In sectors such as power metering, industrial automation systems, and energy storage, RS485 nodes frequently operate over long distances and are exposed to differing ground potentials. Effective galvanic isolation is paramount in these scenarios to prevent data corruption, equipment damage, and ensure the safety of personnel.
By offering a superior, more reliable, and space-efficient isolation solution, NOVOSENSE enables manufacturers to design more robust, compact, and energy-efficient systems. The extended service life of capacitive isolators, coupled with their enhanced noise immunity and surge protection, translates into reduced maintenance costs, improved system uptime, and greater data integrity for mission-critical applications.
The ability to shrink PCB footprints by over 60% can also enable the development of smaller, more densely packed electronic modules, facilitating miniaturisation trends in industrial control panels and field devices. This not only optimises physical space but also potentially reduces material costs for enclosures and overall system size.
Conclusion
NOVOSENSE Microelectronics’ introduction of the SP301H/L digital isolator family marks a pivotal moment for RS485 communication links. By integrating three isolation channels onto a single chip and leveraging advanced third-generation capacitive isolation technology, the company offers a compelling alternative to traditional optocoupler-based designs. These new digital isolators for RS485 provide unparalleled advantages in terms of performance, reliability, compactness, and longevity.
As industries continue to demand higher levels of integration, robustness, and efficiency from their communication infrastructure, solutions like the SP301H/L will be instrumental in driving the next wave of innovation in industrial automation, energy management, and beyond. NOVOSENSE continues to solidify its position as a key innovator in the field of isolation technology, providing essential building blocks for the future of connected industrial systems.
Frequently Asked Questions (FAQ)
What is the primary advantage of NOVOSENSE SP301H/L over traditional optocouplers?

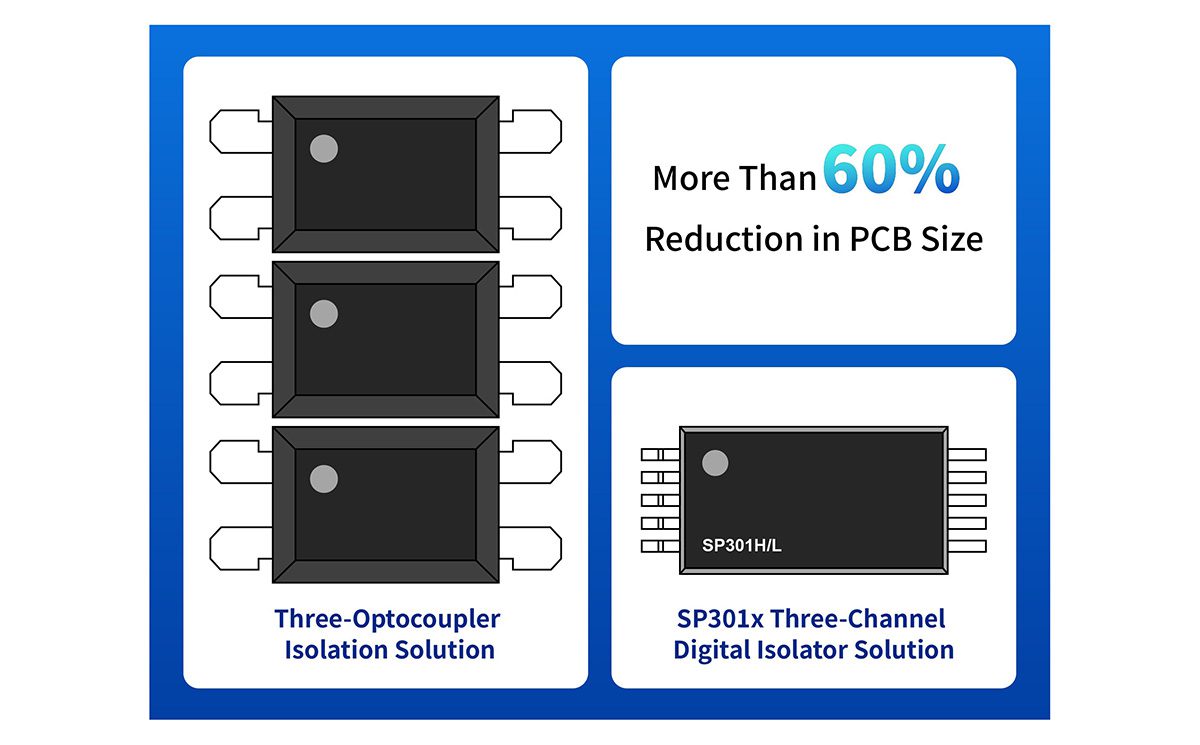

The SP301H/L digital isolators integrate three isolation channels onto a single chip, directly replacing three discrete optocouplers and their supporting passives. This integration significantly reduces PCB area by over 60%, lowers the bill of materials, and eliminates the wear-out mechanisms (LED degradation) inherent in optocouplers, leading to a much longer service life and improved reliability.
What kind of isolation technology does the SP301H/L use?
The SP301H/L leverages NOVOSENSE’s advanced third-generation capacitive isolation technology. This method uses electric fields to transmit signals across an isolation barrier, providing robust galvanic isolation without the need for light-emitting components, thus ensuring consistent performance and extended operational life.
What are the key performance specifications for data transfer?
The SP301H/L supports high-speed communication, with its data channel capable of operating up to 8 Mbps. The enable control channel also performs efficiently at speeds up to 1 Mbps. These speeds are generally faster than what is typically achieved with optocoupler-based RS485 isolation solutions, supporting more responsive industrial systems.
How robust are these digital isolators against electrical disturbances?
The SP301H/L series is highly robust, featuring a withstand voltage of up to 5 kVrms for one minute and surge capability exceeding 10 kV. It also boasts a typical common-mode transient immunity (CMTI) of 200 kV/μs and improved power-supply noise immunity. These features ensure reliable, error-free communication in electrically noisy and demanding industrial environments, meeting reinforced insulation requirements.
In which applications will the SP301H/L series be most beneficial?
The SP301H/L is ideally suited for applications requiring robust RS485 communication links in challenging environments. This includes power meters, industrial automation systems, and energy storage solutions. Its low quiescent current also makes it suitable for battery-powered field instruments, enhancing system longevity and reducing maintenance in remote or distributed installations.
What improvements does the SP301H/L offer over previous NOVOSENSE models?
Compared to previous models like the SP301A and NIRS31 series, the SP301H/L features a 10% improvement in electrical overstress (EOS) tolerance. It also maintains latch-up immunity above 10V and significantly enhances power-supply noise immunity, ensuring stable communication even under high-frequency, high-amplitude system noise in the MHz range. This leads to greater system reliability and resilience.
