Key Takeaways (TL;DR):
- ITECH has launched its IT8100A/E Series DC electronic loads, a sophisticated test platform designed for demanding applications such as EV charging validation, power battery testing, fuel cell research, and AI power supply evaluation.
- The series offers an unparalleled parallel capacity of up to 1.8 MW, enabling large-scale, high-power testing configurations.
- A class-leading power density of 7.2 kW per 3U rack unit allows for compact yet powerful test setups, scaling to 86.4 kW in a standard 37U cabinet.
- Its dynamic slew rate of 150 A/µs is engineered to accurately replicate rapid current transients, crucial for testing modern switching power supplies and fuel cells.
- The IT8100A/E Series includes a unique 1.5x short-term over-power capability, handling peak load conditions efficiently without requiring oversized equipment.
- Notably, a dedicated high-current variant (60 V / 2400 A / 6 kW) addresses the specific needs of next-generation AI GPU and computing power supply testing, which operate at low voltages and very high currents.
- With voltage levels up to 1200 V, the series is fully equipped to validate the emerging 800 V EV charging architectures.

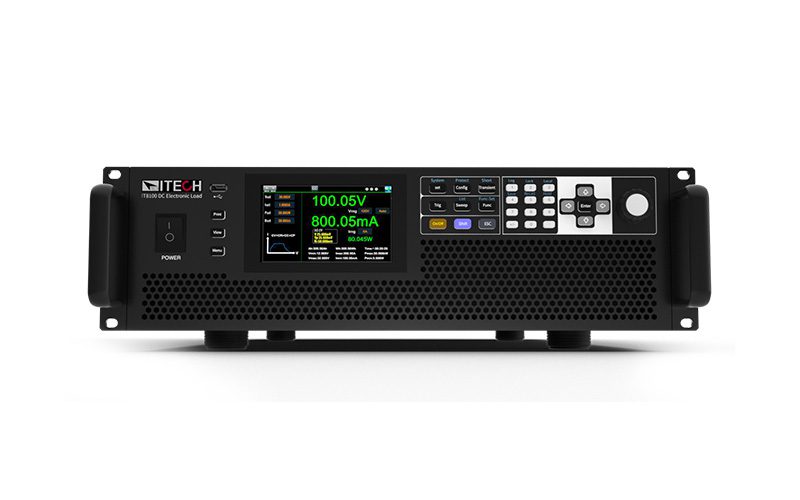

ITECH Introduces Advanced DC Electronic Loads for Critical Industries
ITECH, a prominent provider of power electronic test solutions, has officially announced the release of its IT8100A/E Series DC electronic loads. This new generation of high-power DC electronic loads is set to redefine testing standards across several rapidly evolving sectors, including electric vehicle (EV) technology, renewable energy, and artificial intelligence (AI) infrastructure.
The IT8100A/E Series emerges as a critical tool for engineers and researchers grappling with increasingly complex and high-power demands. Designed from the ground up to meet rigorous industry specifications, these electronic loads offer significant advancements in power capacity, dynamic response, and testing versatility.
The introduction of these high-power DC electronic loads marks a significant step forward in providing robust and reliable testing capabilities essential for validating the performance and safety of advanced power systems. Its modular design allows for seamless scaling from individual units to comprehensive, multi-megawatt test environments.
Unprecedented Power Density and Parallel Capacity
A cornerstone feature of the IT8100A/E Series is its remarkable scalability and power density. Individual units are engineered to deliver 7.2 kW of power within a compact 3U rack unit. This high power-to-space ratio is crucial for optimizing lab space and creating efficient test configurations.
For larger-scale applications, the system can be configured to achieve an impressive 86.4 kW within a single 37U cabinet. This modularity extends further, allowing multiple units to operate in parallel, collectively reaching an astounding 1.8 MW capacity. This capability is particularly vital for testing large power systems that demand substantial load simulation, such as grid-scale battery storage or ultra-fast EV charging stations.
The ability to scale power linearly without sacrificing performance ensures that the IT8100A/E series of high-power DC electronic loads can adapt to a wide spectrum of testing requirements, from benchtop component validation to full-scale system verification. This flexibility provides a future-proof investment for research and development laboratories as well as manufacturing quality assurance departments.
Dynamic Slew Rate for Real-World Scenarios
Precision in Transient Response
Modern power systems, especially those found in EVs and AI data centers, are characterized by rapid and significant current fluctuations. Accurately simulating these dynamic conditions is paramount for thorough testing. The IT8100A/E Series addresses this need with an exceptional dynamic slew rate of 150 A/µs.
This high slew rate allows the electronic loads to precisely reproduce fast current transients, which are common in applications like switching power supplies, sophisticated charging systems, and advanced fuel cells. Such precision is critical for identifying potential instabilities, evaluating control loop performance, and ensuring the robust operation of devices under realistic, rapidly changing load conditions.
Over-Power Capability for Peak Loads
Another crucial enhancement is the inclusion of a 1.5x short-term over-power capability. This intelligent feature allows the high-power DC electronic loads to momentarily handle peak load conditions that exceed their nominal rating without requiring the installation of an oversized test configuration. This not only optimizes equipment utilization but also helps to reduce overall testing costs and complexity.
The ability to manage transient power surges efficiently ensures that tests can accurately reflect real-world operational stress, where devices frequently experience short bursts of higher-than-average power demand. This capability reinforces the series’ suitability for rigorous product validation and quality control.
Addressing Critical EV and AI Power Supply Test Needs
Supporting 800V EV Architectures
The electric vehicle industry is rapidly evolving, with a clear trend towards higher voltage architectures, particularly the transition from 400 V to 800 V systems. These higher voltages enable faster charging times and improved powertrain efficiency. The IT8100A/E Series is well-prepared for this shift, offering four voltage levels: 60 V, 150 V, 600 V, and critically, 1200 V.
The 1200 V ceiling is specifically designed to accommodate the testing requirements of 800 V EV charging architectures. In such systems, the DC link voltages at the load can significantly exceed the levels seen in standard 400 V infrastructure, necessitating higher voltage testing capabilities. This ensures that next-generation EV components, from batteries to inverters and charging infrastructure, can be thoroughly tested and validated against future industry standards.
Specialized High-Current Variant for AI Computing
The burgeoning field of artificial intelligence and high-performance computing presents unique power delivery challenges. Next-generation AI GPUs and specialized computing power supplies often operate at very low supply voltages but demand exceptionally high currents. To meet this specific requirement, ITECH has developed a dedicated high-current variant within the IT8100A/E series.
This specialized load offers a configuration of 60 V / 2400 A / 6 kW. Such specifications are tailor-made for testing power delivery units designed for cutting-edge AI accelerators, ensuring they can handle the immense current draw efficiently and reliably without voltage sag. This capability underscores ITECH’s commitment to supporting advancements in diverse high-tech sectors with its high-power DC electronic loads.
Flexible Configurations and Availability
The IT8100A/E Series is structured into three distinct product families: the IT8100A Series, the IT8100E Series, and the dedicated high-current load. This segmentation provides users with flexible options for configuring their test environments, ranging from compact benchtop setups for component-level testing to large-scale, MW-class platforms for integrated system validation.
This comprehensive approach ensures that engineers can select the precise combination of units to match their application’s specific power, voltage, and current demands. The IT8100A/E Series of high-power DC electronic loads is available now, ready to be integrated into existing and new test infrastructure worldwide.
Source: ITECH
Frequently Asked Questions (FAQ)
What are the primary applications of the ITECH IT8100A/E Series?
The IT8100A/E Series is primarily designed for demanding test applications in EV charging station validation, power battery performance evaluation, fuel cell testing, and the rigorous assessment of power supplies for AI computing infrastructures. Its high power and dynamic capabilities make it suitable for a wide range of cutting-edge R&D and quality assurance tasks.
What is the maximum parallel capacity of the IT8100A/E Series?
The IT8100A/E Series DC electronic loads can achieve an impressive maximum parallel capacity of 1.8 MW. This allows for the creation of extremely high-power test platforms, capable of simulating significant electrical loads required for large-scale energy systems and advanced industrial applications.
How does the 150 A/µs slew rate benefit testing?
A slew rate of 150 A/µs enables the IT8100A/E Series to accurately replicate very rapid current transients. This is crucial for effectively testing the stability and response of power electronics like switching power supplies, EV chargers, and fuel cells under sudden and severe load changes, ensuring robust performance in real-world conditions.
Can this series test 800V EV charging systems?
Yes, the IT8100A/E Series is fully equipped to test 800V EV charging architectures. It offers a maximum voltage level of 1200 V, which is essential for validating components and systems that operate at the elevated DC link voltages characteristic of next-generation 800V electric vehicles and their charging infrastructure.
What is the purpose of the dedicated high-current variant?
The dedicated high-current variant (60 V / 2400 A / 6 kW) is specifically designed to address the unique power testing requirements of next-generation AI GPU and computing power supplies. These systems typically operate at low voltages but draw extremely high currents, making a specialized high-current load essential for accurate and thorough performance validation.
What is the power density of a single 3U rack unit?
A single 3U rack unit within the IT8100A/E Series provides a power density of 7.2 kW. This high density allows engineers to achieve substantial power capabilities within a compact footprint, optimizing laboratory space and enabling more efficient and flexible test system designs.
When did ITECH release the IT8100A/E Series?
ITECH officially released the IT8100A/E Series DC electronic loads on May 1, 2026. The series is currently available for purchase and deployment in various industrial and research settings globally.
