Key Takeaways
- NOVOSENSE Microelectronics has introduced the SP301H/L digital isolator family, designed to streamline RS485 communication links.
- These new isolators consolidate three isolation channels onto a single chip, effectively replacing three traditional optocouplers and associated passive components.
- Built on third-generation capacitive isolation technology, the SP301H/L offers superior speed, reaching 8 Mbps for data channels and 1 Mbps for enable control.
- The compact SSOW10 wide-body package reduces PCB area by over 60% compared to conventional optocoupler-based solutions.
- Enhanced electrical ruggedness includes a 5 kVrms withstand voltage, 10 kV surge capability, improved electrical overstress (EOS) tolerance, and high common-mode transient immunity of 200 kV/μs.
- With low quiescent current and robust noise immunity, the SP301H/L is ideal for demanding industrial, energy storage, and battery-powered field instrument applications.
NEW DELHI, India – In a significant advancement for industrial communication infrastructure, NOVOSENSE Microelectronics has unveiled its SP301H/L family of three-channel digital isolators. This innovative solution, leveraging the company’s third-generation capacitive isolation technology, is specifically engineered to enhance RS485 communication links, offering a robust and integrated alternative to traditional isolation methods.
The introduction of the SP301H/L marks a pivotal shift in design philosophy, as a single chip now replaces the trio of optocouplers and numerous supporting passive components that conventional isolated RS485 designs typically necessitate. This integration is poised to simplify circuit designs, reduce component count, and improve overall system reliability.
Integrated Isolation Redefines RS485 Links
The core innovation of the SP301H/L series lies in its ability to consolidate three essential isolation channels onto a single semiconductor device. This architectural change directly addresses the complexities and space requirements associated with discrete optocoupler-based solutions.
Traditional optocouplers, while effective in providing galvanic isolation, often demand significant board real estate due to their individual packaging and the need for external passive components. The NOVOSENSE SP301H/L streamlines this, presenting a compact, high-performance alternative that is both space-efficient and cost-effective.
Unpacking Performance: Speed and Design Flexibility
Performance is a key differentiator for the new digital isolators. The data channel on the SP301H/L family operates at an impressive speed of up to 8 Mbps, significantly faster than the typical speeds achieved by many optocoupler-based RS485 isolation implementations. This higher data rate ensures more efficient and responsive communication in demanding applications.
Furthermore, the enable control channel functions at up to 1 Mbps, providing prompt and reliable control over data transmission. NOVOSENSE has also engineered the SP301H/L series with design flexibility in mind, offering two distinct enable-logic options to cater to varying microcontroller (MCU) enable requirements.
The SP301H variant features a default-high enable pin, while the SP301L is equipped with a default-low pin. This choice allows designers to select the most suitable part based on their existing MCU logic, thereby simplifying integration and reducing the need for additional interface circuitry.
Compact Footprint and Enhanced Ruggedness

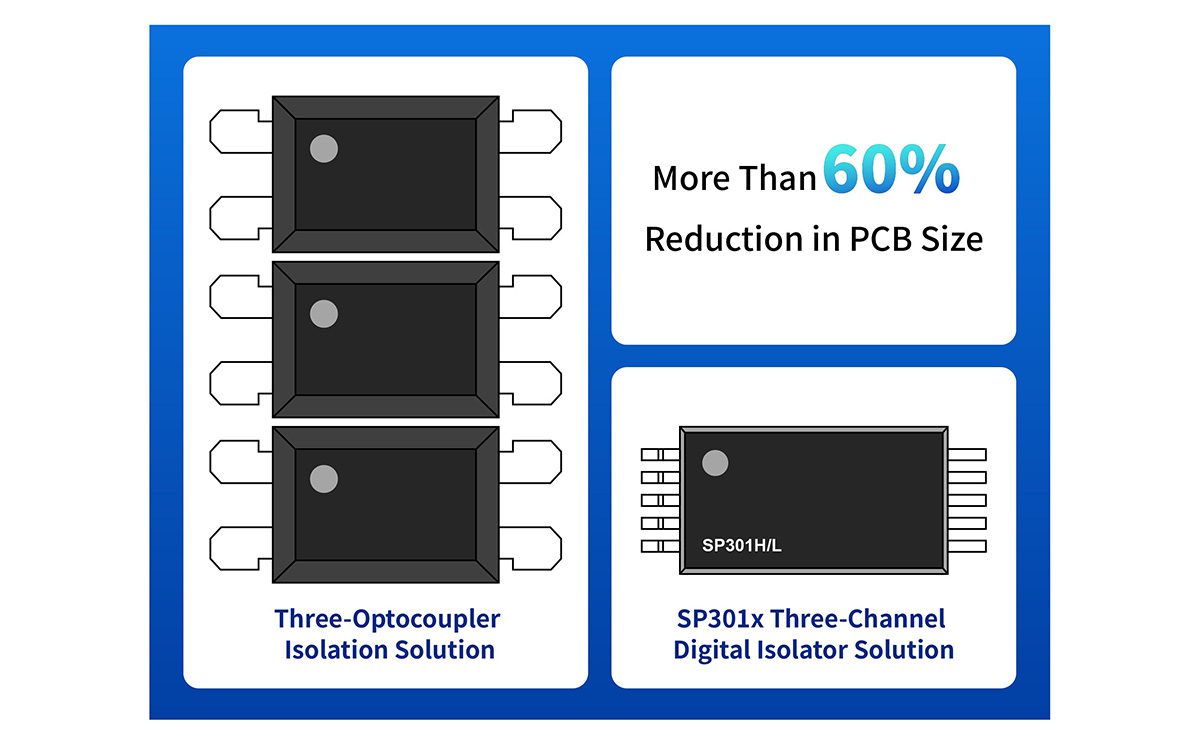

Both versions of the SP301H/L are housed in a compact SSOW10 wide-body package, characterised by its fine-pitch leads. This miniaturised form factor delivers substantial space savings, with NOVOSENSE indicating that it can reduce the required PCB area by more than 60% compared to designs utilising multiple optocouplers.
Such a reduction in board space is critical for modern industrial equipment, where miniaturisation and high-density integration are paramount. Beyond its compact size, the SP301H/L is built for resilience, designed to operate across a wide ambient temperature range, from –40°C to 125°C.
The device’s low quiescent current further enhances its appeal, making it particularly well-suited for battery-powered field instruments where energy efficiency and extended operational life are crucial considerations.
Meeting Stringent Industrial Standards
The SP301H/L digital isolators are engineered to meet stringent industrial safety and reliability standards. According to NOVOSENSE, the parts support a formidable withstand voltage of up to 5 kVrms for a duration of one minute, alongside a surge capability exceeding 10 kV. These specifications ensure compliance with reinforced insulation requirements, critical for robust system protection in high-voltage environments.
Common-mode transient immunity (CMTI) is another area where the new isolators excel, reaching a typical value of 200 kV/μs. This high level of immunity is vital for maintaining signal integrity in electrically noisy industrial settings, where transient events can disrupt communication.
Advancements in Electrical Overstress and Noise Immunity
Compared to its predecessors, the SP301A and NIRS31 series, the SP301H/L demonstrates significant enhancements in its electrical ruggedness. NOVOSENSE reports an improvement in electrical overstress (EOS) tolerance by approximately 10%.
Furthermore, the latch-up immunity of the new parts remains robust, staying above 10 V. These improvements underscore the reliability of the SP301H/L in challenging operational conditions, safeguarding against potential damage from electrical disturbances.
A key focus during development was also placed on improving power-supply noise immunity. The company states that this enhancement ensures error-free communication even under conditions of high-frequency, high-amplitude system noise, often encountered in the MHz range within complex industrial systems.
Strategic Placement in the Isolation+ Portfolio
NOVOSENSE has strategically positioned the SP301H/L within its comprehensive Isolation+ product line. This portfolio encompasses a wide array of digital isolators, isolated sensors, interfaces, power supplies, and gate drivers, reflecting NOVOSENSE’s commitment to providing integrated isolation solutions across various industrial applications.
The Isolation+ line caters to diverse needs in sectors requiring robust electrical separation for safety, performance, and data integrity.
The Critical Role of Digital Isolators in Industrial Automation
RS485 communication nodes are ubiquitous in critical equipment such as power meters, expansive industrial automation systems, and advanced energy storage solutions. These nodes are frequently deployed across significant distances, leading to differences in ground potentials. Moreover, they are often susceptible to electrical surges, which can compromise data integrity and system safety.
A digital isolator plays a crucial role in these environments by effectively blocking these potential differences and surges while ensuring the seamless transmission of signals. This protective barrier is indispensable for preventing damage to sensitive electronics and ensuring the continuity of operations.
In contrast, optocouplers, which perform a similar isolation function by coupling signals through light-emitting diodes (LEDs), are prone to degradation over time. The output intensity of an LED can dim over years of operation, leading to shifts in timing characteristics and ultimately limiting the service life of the component.
Capacitive isolators, such as the SP301H/L, fundamentally differ from optocouplers in this regard. They operate without a wear-out mechanism tied to light emission, offering a longer and more predictable operational lifespan. By integrating three channels onto a single chip, the SP301H/L not only eliminates the wear-out issue but also significantly reduces the bill of materials (BOM) and simplifies printed circuit board (PCB) routing requirements that are inherent in discrete optocoupler designs.
Applications Across Key Industrial Sectors
The robust features and reliability of the SP301H/L make it an ideal component for a multitude of demanding applications. In power meters, where precise and secure data transmission is essential, the isolator ensures accurate readings and protection against electrical disturbances.
Within industrial automation systems, its high-speed communication and noise immunity contribute to more reliable control and data acquisition. For energy storage systems, which often involve high voltages and currents, the reinforced insulation and surge capability provide critical safety and performance advantages.
The SP301H/L stands out as a comprehensive solution for engineers seeking to enhance the performance, reliability, and compactness of their RS485 communication interfaces in an increasingly interconnected and electrified industrial landscape. NOVOSENSE continues to innovate, providing essential components that drive the evolution of high-performance and robust electrical engineering solutions.
Frequently Asked Questions About NOVOSENSE SP301H/L Digital Isolators
What is the primary function of the NOVOSENSE SP301H/L?
The SP301H/L is a family of three-channel digital isolators designed to provide robust electrical isolation for RS485 communication links. It protects against ground potential differences and electrical surges while ensuring reliable signal transmission.
How does the SP301H/L improve upon traditional isolation methods?
It integrates three isolation channels into a single chip, directly replacing three individual optocouplers and associated passive components. This leads to a significant reduction in PCB area (over 60%), simplified design, and improved system reliability.
What are the key performance specifications of the data and control channels?
The data channel supports speeds up to 8 Mbps, while the enable control channel operates at up to 1 Mbps. These speeds are generally faster than typical optocoupler-based RS485 isolation solutions, enhancing communication efficiency.
What kind of electrical ruggedness does the SP301H/L offer?
It features a withstand voltage of up to 5 kVrms for one minute, surge capability exceeding 10 kV, and a high common-mode transient immunity of 200 kV/μs. It also boasts improved electrical overstress (EOS) tolerance and latch-up immunity.
What is capacitive isolation technology and why is it beneficial?
Capacitive isolation is a modern isolation technique that electrically separates circuits without using light-emitting components like optocouplers. This technology offers a longer service life because it doesn’t suffer from the wear-out mechanisms (like LED dimming) inherent in optocouplers.
For which applications is the SP301H/L particularly suitable?
Given its low quiescent current, wide operating temperature range, and robust electrical specifications, it is well-suited for battery-powered field instruments, power meters, industrial automation systems, and energy storage applications where reliability and efficiency are critical.
Are there different versions available for design flexibility?
Yes, NOVOSENSE offers two enable-logic options: the SP301H with a default-high enable pin and the SP301L with a default-low pin. This provides flexibility for designers to match the isolator with their MCU enable logic.
