Key Takeaways (TL;DR):
- The electric vehicle (EV) industry faces a critical supply gap for high-temperature DC-link capacitor films, essential for next-generation 800V+ Silicon Carbide (SiC) inverters.
- Conventional dielectric films are insufficient for the extreme thermal, voltage, and dV/dt demands of advanced SiC power electronics.
- Peak Nano’s NanoPlex™ LDF is introduced as a domestically manufactured, high-temperature dielectric film engineered to close this technology and supply gap.
- NanoPlex LDF seamlessly integrates with Advanced Conversion’s patented Power Ring platform, offering a robust solution without requiring system redesign.
- The film’s development addresses critical domestic supply chain implications for multi-year EV inverter programs, enhancing reliability and resilience.
- Ongoing characterization and testing promise potential advancements beyond established benchmarks, driving future innovations in EV power conversion.
The rapid evolution of electric vehicle (EV) technology, particularly the shift towards 800V+ Silicon Carbide (SiC) inverters, is placing unprecedented demands on power electronics components. Central to these high-performance systems are DC-link capacitors, which require advanced dielectric films capable of withstanding extreme thermal, voltage, and dV/dt conditions. While technological solutions have existed, a recent market exit by a key high-temperature film supplier has created a significant supply-side challenge, rather than a technology deficit.
In response to this critical industry need, Peak Nano has introduced its NanoPlex™ LDF film, a domestically manufactured, high-temperature dielectric solution specifically engineered for the rigorous requirements of 800V+ SiC power conversion. This innovation promises to close a vital gap, ensuring the continued advancement and reliable production of next-generation EV platforms.
The Evolving Landscape of 800V+ SiC Inverters
The automotive industry’s pivot to 800V+ architectures in EVs is driven by the quest for faster charging times, extended range, and enhanced overall system efficiency. Silicon Carbide (SiC) technology plays a pivotal role in achieving these objectives, offering superior switching speeds and lower power losses compared to traditional silicon-based components. However, the benefits of SiC come with unique challenges for supporting components, particularly DC-link capacitors.
These capacitors must operate reliably under conditions of increased voltage stress, higher operating temperatures, and rapid voltage changes (dV/dt) inherent to SiC inverter operation. Conventional dielectric films, often used in lower voltage or less demanding applications, simply cannot endure these harsh environments without significant degradation in performance and lifespan.
Advanced Conversion’s Power Ring Platform: A Foundation

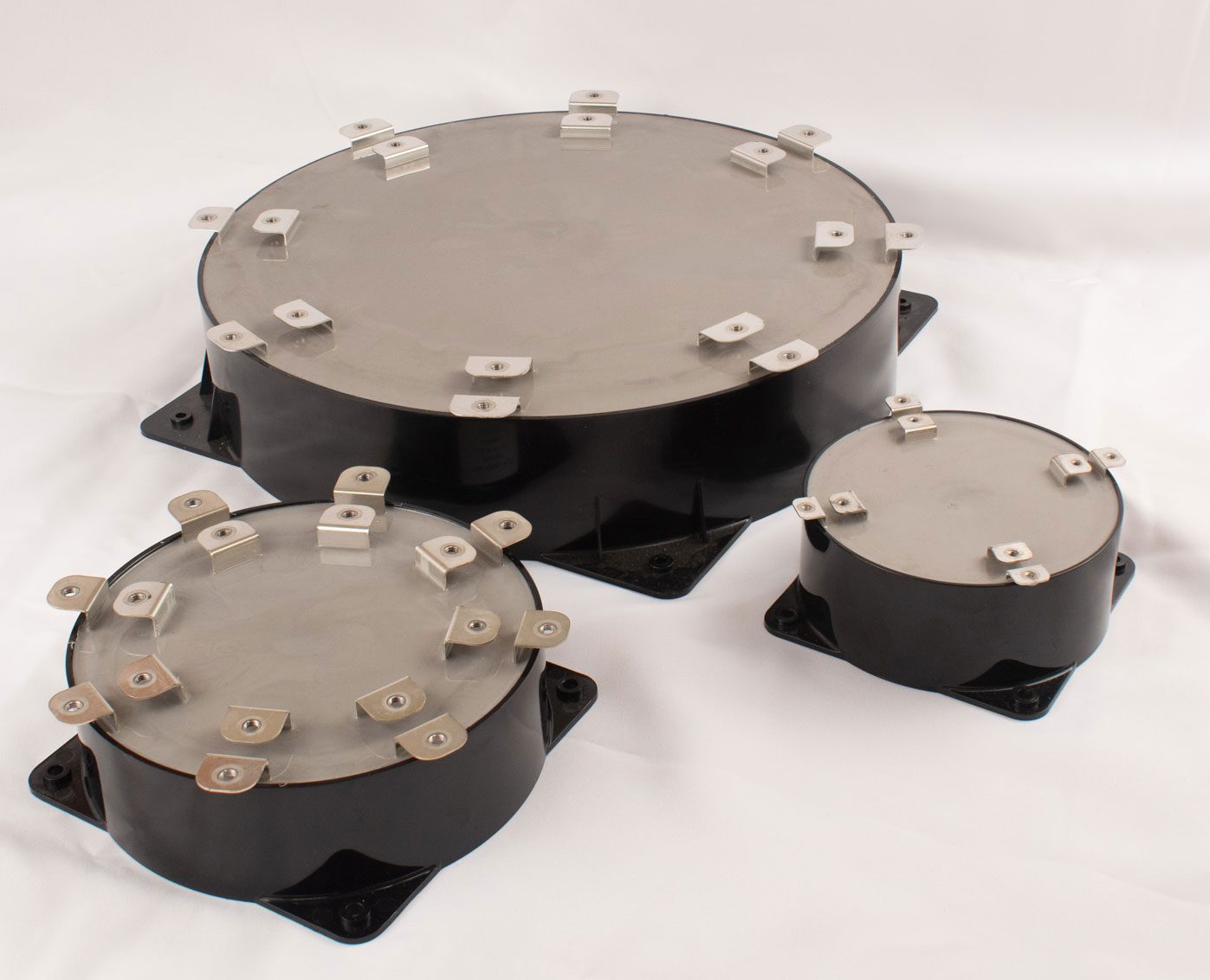

For years, Advanced Conversion has been at the forefront of addressing these challenges with its patented Power Ring platform. This innovative architecture, when paired with high-temperature PEN HV polymer dielectric film, provided a robust solution for demanding DC-link applications. The Power Ring platform is designed to optimize thermal management and electrical performance, crucial for the longevity and efficiency of EV inverters.
The success of the Power Ring platform highlighted the industry’s capacity for technological innovation. However, the recent withdrawal of the high-temperature film supplier underscored a vulnerability in the supply chain, transforming a solved technological problem into a pressing supply issue that threatened to impede progress in high-performance EV development.
NanoPlex™ LDF: Bridging the Supply and Technology Gap
Enter Peak Nano’s NanoPlex™ LDF film, a development poised to re-establish stability and drive further advancements in this critical component area. NanoPlex LDF is not merely a replacement but an advanced solution specifically engineered to meet and potentially exceed the demanding specifications for sustaining high-temperature DC-link film applications in 800V+ SiC inverters.
The film’s core strength lies in its meticulously designed material properties. It exhibits exceptional dielectric strength, crucial for handling the high voltages characteristic of 800V+ systems. Furthermore, its thermal stability ensures reliable operation even in the elevated temperature environments created by high-frequency SiC switching, a common stressor for less robust materials.
Performance Under Pressure: Dielectric Properties and Beyond
Understanding the performance of NanoPlex LDF requires a look at the specific dielectric properties that are paramount for 800V+ SiC DC-link applications. These include dielectric constant, dissipation factor, and breakdown strength, all of which must remain stable across a broad range of temperatures and frequencies.
Peak Nano has focused on engineering NanoPlex LDF to excel in these critical areas, ensuring it performs robustly against the specific thermal, voltage, and dV/dt conditions imposed by SiC technology. This targeted development means the film is not just resilient but optimized for the unique energy storage and discharge requirements of modern EV power electronics.
Seamless Integration with Existing Platforms
A significant advantage of NanoPlex LDF is its compatibility with established industry architectures. The film is designed to integrate seamlessly into Advanced Conversion’s Power Ring platform without necessitating a complete redesign of the surrounding system. This ‘drop-in’ capability is vital for manufacturers, as it minimizes development costs and accelerates time-to-market for new EV models incorporating this advanced capacitor technology.
The ability to integrate new, high-performance materials without disrupting existing, validated designs is a testament to the thoughtful engineering behind NanoPlex LDF and its potential to streamline the adoption of next-generation power solutions in the automotive sector.
Strengthening the Domestic Supply Chain for EV Components
The domestic manufacturing of NanoPlex LDF carries significant strategic implications, particularly for multi-year inverter programs within the EV industry. A secure, localized supply chain reduces reliance on international sources, mitigating risks associated with geopolitical instabilities, trade disruptions, and logistics challenges.
This domestic production capability enhances the resilience and predictability of manufacturing operations for EV original equipment manufacturers (OEMs) and their suppliers. It ensures a consistent and reliable flow of critical components, which is indispensable for meeting the aggressive production targets and innovation cycles characteristic of the rapidly expanding EV market.
The Road Ahead: Open Questions and Testing Roadmap
While NanoPlex LDF already represents a significant leap forward, Peak Nano is committed to continuous improvement and rigorous validation. A broader characterization program is currently underway, encompassing extensive testing and analysis to fully understand the film’s performance envelope and identify areas for further enhancement.
This Peak-funded testing initiative aims to explore the full potential of NanoPlex LDF, potentially pointing toward further advances beyond the established PEN HV baseline. Any such claims will be made only when substantiated by robust, verifiable data, adhering to the highest standards of scientific and engineering rigor. The testing roadmap includes evaluating long-term reliability, performance under extreme cycling, and potential for even higher temperature or voltage applications.
Learning More: An Upcoming Webinar
Industry professionals, engineers, and stakeholders interested in the future of EV power electronics are invited to delve deeper into these developments. A technical webinar is scheduled for Wednesday, June 17th, 2026, at 11:00 AM EDT. This session will offer a comprehensive overview of the dielectric requirements for 800V+ SiC DC-link applications and present detailed insights into NanoPlex LDF’s material properties, performance envelope, and current characterization status.
The webinar will also cover the integration of NanoPlex LDF with the Advanced Conversion Power Ring platform, discuss the vital domestic supply chain implications for multi-year inverter programs, and outline the open technical questions guiding the ongoing testing roadmap. This free event presents a valuable opportunity to gain expert knowledge on a critical component shaping the next generation of electric vehicles.
FAQ Section
What makes 800V+ SiC inverters challenging for DC-link capacitors?
800V+ SiC (Silicon Carbide) inverters operate at higher voltages, elevated temperatures, and faster switching speeds (high dV/dt). These conditions place extreme stress on DC-link capacitors, requiring dielectric films that can maintain stable performance without degrading, a capability conventional films often lack.
What is NanoPlex™ LDF and who developed it?
NanoPlex™ LDF is a new, high-temperature dielectric film developed by Peak Nano. It is specifically engineered to meet the stringent thermal, voltage, and dV/dt requirements of 800V+ SiC inverters, addressing a critical supply gap in the EV engineering sector with a domestically manufactured solution.
How does NanoPlex LDF integrate with existing EV power systems?
NanoPlex LDF is designed for seamless integration with Advanced Conversion’s patented Power Ring platform. This compatibility means that EV manufacturers can adopt the new film technology without needing to redesign the entire surrounding inverter system, streamlining development and production processes.
Why is a domestic supply chain for this film important?
A domestic supply chain for high-temperature DC-link film, like NanoPlex LDF, is crucial for multi-year EV inverter programs. It enhances supply security, reduces vulnerability to international disruptions, and ensures a consistent flow of critical components. This stability is vital for meeting production targets and fostering innovation within the rapidly growing EV market.
What are the key technical areas NanoPlex LDF addresses?
NanoPlex LDF focuses on critical dielectric requirements for 800V+ SiC applications, including material properties that ensure high-temperature stability, superior voltage endurance, and robust performance under rapid voltage changes (dV/dt). Its characterization program is continually validating and exploring these capabilities to potentially exceed current industry baselines.
