Key Takeaways (TL;DR)
ROHM Semiconductor has launched the RESDxVx series, a new line of ESD protection diodes designed for high-speed interfaces exceeding 10 Gbps. These diodes feature an industry-leading combination of ultra-low terminal capacitance (0.24 pF bidirectional, 0.48 pF unidirectional) and low dynamic resistance (0.28 Ω). This breakthrough addresses a critical challenge in high-speed data transmission: maintaining signal integrity while providing robust electrostatic discharge (ESD) protection. The RESDxVx series achieves approximately 40% lower clamping voltage compared to conventional products at equivalent capacitance, significantly enhancing the protection for sensitive downstream ICs. Variants are AEC-Q101 certified for automotive applications, including ADAS and autonomous driving, while non-automotive versions target critical infrastructure like AI servers, 5G/6G base stations, and consumer high-speed interfaces such as USB4 and PCIe.
The Escalating Demand for High-Speed Interface Protection
As technological advancements push the boundaries of data transmission, high-speed interfaces operating at 10 Gbps and beyond have become commonplace. From sophisticated automotive systems to cutting-edge data centers and consumer electronics, the need for rapid and reliable data transfer is paramount. However, this acceleration brings with it a formidable challenge: safeguarding sensitive integrated circuits (ICs) from electrostatic discharge (ESD) events without compromising signal integrity.
ESD, a sudden flow of electricity between two electrically charged objects, can cause irreversible damage to semiconductor components. In high-speed communication lines, even minute amounts of parasitic capacitance introduced by protection devices can significantly distort signal waveforms, leading to data errors and system instability. Traditional ESD protection solutions often presented a difficult trade-off: lower capacitance for better signal integrity typically came at the cost of higher dynamic resistance, which weakened the device’s ability to clamp harmful ESD voltages effectively.
ROHM’s Breakthrough in ESD Diode Technology
Addressing this critical engineering dilemma, ROHM Semiconductor has unveiled its innovative RESDxVx series of high-speed ESD protection diodes. This new series is meticulously engineered to provide robust protection for interfaces operating at data rates exceeding 10 Gbps, setting a new benchmark for performance in the industry.
The RESDxVx series boasts an impressive combination of technical specifications that directly tackle the core design challenges. It achieves an exceptionally low terminal capacitance of just 0.24 pF for bidirectional configurations and 0.48 pF for unidirectional variants. Crucially, these figures are paired with a remarkably low dynamic resistance of 0.28 Ω.
Overcoming the Protection-Performance Trade-off
The true innovation of the ROHM ESD diodes lies in their ability to break the long-standing compromise between capacitance and dynamic resistance. Previously, engineers faced a dilemma: prioritize minimal capacitance to preserve signal integrity, often at the expense of a weaker clamping response, or opt for stronger clamping with an increase in capacitance that could distort high-speed signals.
ROHM’s advanced design and manufacturing processes have allowed them to achieve a superior balance. The RESDxVx series delivers a clamping voltage approximately 40% lower than that of conventional competing products, even when compared at equivalent capacitance levels. This significant reduction in clamping voltage means that downstream ICs receive enhanced protection from overstress during an ESD event, without introducing signal degradation that can plague high-speed data streams.
This technical advancement is pivotal for maintaining the delicate balance required in modern high-speed electronic systems. It ensures that critical data pathways remain clear and efficient, while simultaneously offering a formidable defense against transient voltage spikes that could otherwise lead to system failure or degradation.
Automotive-Grade Reliability for Next-Gen Vehicles
The automotive industry stands as a primary beneficiary of this cutting-edge technology. With the rapid evolution of Advanced Driver-Assistance Systems (ADAS) and the drive towards fully autonomous vehicles, the sheer volume and speed of data processed within a car have skyrocketed. Systems relying on SerDes (Serializer/Deserializer) communication require exceptionally reliable and high-performance components.

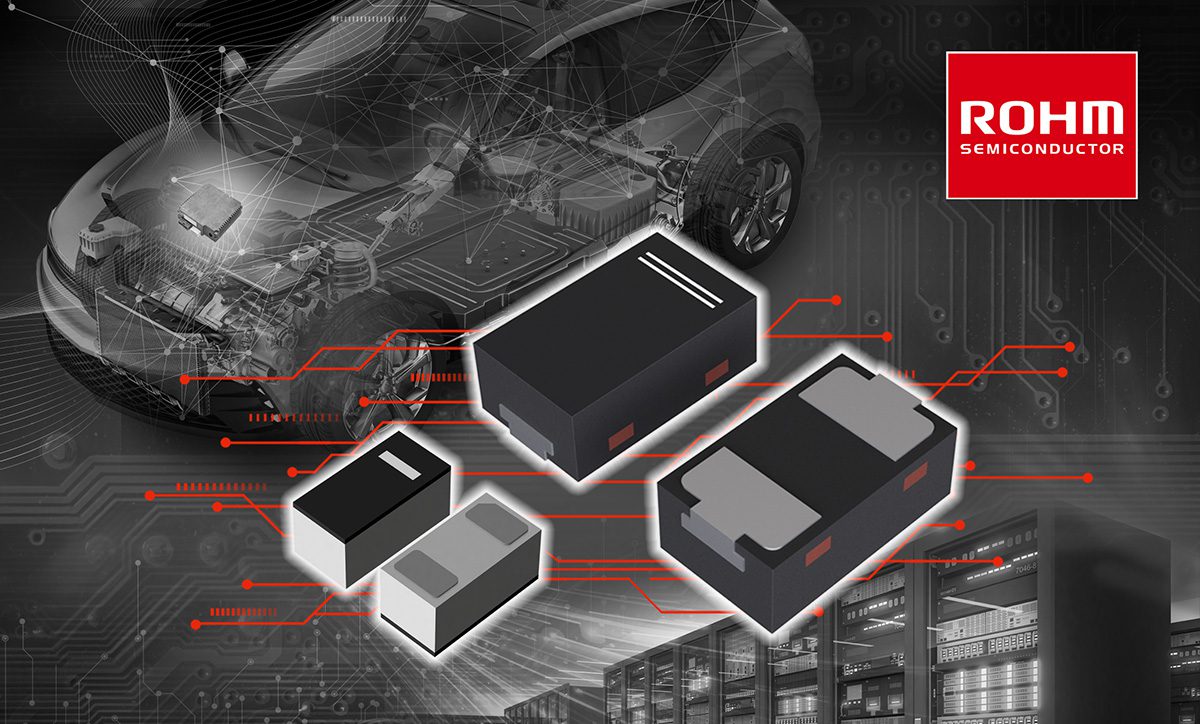

ROHM has specifically developed automotive-qualified variants within the RESDxVx series, including the RESD3V3BASAFH, RESD5V0BASAFH, RESD3V3UASAFH, and RESD5V0UASAFH. These robust devices are packaged in the compact DFN1006-2W form factor and have received AEC-Q101 certification, a stringent qualification standard for automotive-grade discrete semiconductors. This certification underscores their reliability and suitability for harsh automotive environments.
Target applications for these high-speed ESD protection diodes in vehicles are extensive. They are crucial for ADAS and autonomous driving cameras, which continuously stream vast amounts of sensor data. Surround view systems, providing a 360-degree view around the vehicle, also benefit from this enhanced protection. Furthermore, Electronic Control Units (ECUs) employing SerDes communication for various vehicle functions will find these diodes indispensable for ensuring data integrity and system resilience.
Expanding Reach: Protecting Critical Non-Automotive Infrastructures
Beyond the automotive sector, the RESDxVx series is poised to make a significant impact across a wide array of high-speed, data-intensive applications. Non-automotive variants, available in the ultra-small DSN0603-2J package, are designed to meet the rigorous demands of modern digital infrastructure and consumer electronics.
These ROHM ESD diodes are ideal for safeguarding the intricate interfaces found in AI servers, where massive datasets are processed at lightning speed, and in data center switches, which form the backbone of global digital communication. The advent of 5G and future 6G base stations also necessitates superior high-speed ESD protection to ensure uninterrupted, high-bandwidth connectivity.
Moreover, the series offers robust protection for various consumer interfaces that have become ubiquitous in our daily lives. This includes the latest iterations of USB4, Thunderbolt 4, PCIe, HDMI, DisplayPort, and MIPI D-PHY/C-PHY. These interfaces, crucial for connecting peripherals, displays, and internal components, demand the highest level of signal integrity and protection against everyday ESD threats.
Understanding Key ESD Protection Parameters
To appreciate the significance of the RESDxVx series, it is essential to understand the core parameters of ESD protection diodes. Terminal capacitance refers to the inherent capacitance of the diode itself. In high-speed circuits, lower capacitance is critical to minimize signal attenuation and distortion, ensuring that the integrity of the data waveform is preserved.
Dynamic resistance, on the other hand, measures the resistance of the diode during an ESD event. A lower dynamic resistance indicates that the diode can more effectively shunt the surge current away from the protected IC, resulting in a lower clamping voltage. Clamping voltage is the residual voltage seen by the protected device during an ESD event; a lower clamping voltage translates directly to better protection for the sensitive IC.
The combination of ultra-low capacitance and significantly low dynamic resistance in ROHM’s new RESDxVx series represents a substantial engineering achievement. It ensures that while the device is minimally intrusive to the high-speed signal in normal operation, it provides a highly effective and swift response to harmful electrostatic discharges.
ROHM’s Commitment to Advanced Semiconductor Solutions
ROHM Semiconductor, a renowned leader in power devices and analog ICs, consistently drives innovation in the semiconductor industry. The introduction of the RESDxVx series underscores their commitment to developing advanced solutions that enable the next generation of electronic systems. By addressing the fundamental challenges of high-speed interface protection, ROHM continues to empower designers to create more reliable, efficient, and robust electronic products across diverse sectors.
This strategic product launch reinforces ROHM’s position at the forefront of semiconductor technology, providing critical components that underpin the digital transformation witnessed in automotive, industrial, and consumer electronics markets globally. The RESDxVx series is a testament to meticulous engineering and a deep understanding of the evolving demands of high-speed data environments.
The Future of High-Speed Interconnects
As the digital world continues to accelerate, the demand for even higher data rates and more robust protection solutions will only intensify. The RESDxVx series from ROHM Semiconductor provides a timely and effective answer to current challenges, laying the groundwork for future innovations in connectivity and autonomous technologies. Its ability to deliver superior ESD protection without compromising signal integrity ensures that critical electronic systems can operate reliably and efficiently, even in the most demanding conditions.
This series will undoubtedly play a crucial role in enabling the development of more advanced ADAS features, higher-performance computing platforms, and the expansive growth of 5G/6G networks. By mitigating the risks associated with ESD, ROHM empowers engineers to push the boundaries of design, leading to safer, smarter, and more connected technologies.
Frequently Asked Questions (FAQ)
What is the primary purpose of ROHM’s new RESDxVx series?
The RESDxVx series is designed to provide robust electrostatic discharge (ESD) protection for high-speed interfaces operating at 10 Gbps and above. It ensures signal integrity while safeguarding sensitive downstream ICs from transient voltage spikes, addressing a critical challenge in modern electronics.
What makes the RESDxVx series unique in ESD protection?
Its uniqueness lies in combining ultra-low terminal capacitance (0.24 pF bidirectional, 0.48 pF unidirectional) with exceptionally low dynamic resistance (0.28 Ω). This breaks the traditional trade-off, enabling approximately 40% lower clamping voltage than conventional products at equivalent capacitance levels.
Which automotive applications will benefit from these new ESD diodes?
Automotive variants (AEC-Q101 certified) are ideal for ADAS and autonomous driving cameras, surround view systems, and Electronic Control Units (ECUs) utilizing SerDes communication. They ensure critical data transmission remains reliable in demanding vehicle environments.
Are there non-automotive applications for the RESDxVx series?
Yes, non-automotive variants target a broad range of high-speed interfaces including AI servers, data center switches, and 5G/6G base stations. They also protect consumer interfaces such as USB4, Thunderbolt 4, PCIe, HDMI, DisplayPort, and MIPI D-PHY/C-PHY.
Why is low terminal capacitance important for high-speed interfaces?
In circuits operating above 10 Gbps, even small amounts of parasitic capacitance can distort signal waveforms, leading to data errors. Low terminal capacitance minimizes this interference, preserving the integrity and quality of high-speed data signals.
What is dynamic resistance and why is a low value beneficial?
Dynamic resistance measures a diode’s resistance during an ESD event. A lower dynamic resistance means the diode can more effectively divert the harmful ESD current away from the protected component, resulting in a significantly lower clamping voltage and superior protection.
How does the RESDxVx series enhance E-E-A-T (Experience, Expertise, Authoritativeness, Trustworthiness) for system designers?
By providing a highly reliable and technically superior ESD protection solution, ROHM enables designers to confidently build systems with enhanced performance and longevity. This directly contributes to the trustworthiness and perceived expertise of the final electronic product, fostering a better user experience.
