Key Takeaways:
- TDK has launched the B25696H series of MKP DC-link film capacitors, specifically engineered for the demanding characteristics of SiC-based power converters.
- These new DC-link film capacitors address critical challenges posed by SiC’s high switching frequencies and rapid voltage transitions, particularly voltage overshoot caused by parasitic inductance.
- Key features include ultra-low Equivalent Series Inductance (ESL) as low as 30 nH, an Equivalent Series Resistance (ESR) of 0.8 mΩ, and high ripple current capability up to 91 A.
- The capacitors are designed for critical applications such as energy storage systems, traction drives, solid-state transformers, and renewable energy inverters, offering enhanced efficiency and reliability.
- Utilizing metallized polypropylene dielectric with self-healing properties, the series ensures extended operational lifetime and robust performance across a wide temperature range.
- TDK supports design engineers with its free online CapThermal simulation tool, enabling precise thermal modeling and lifetime estimation for application-specific conditions.
TDK Advances Power Electronics with New DC-Link Film Capacitors for SiC Technology
In a significant development for high-efficiency power electronics, TDK has introduced its B25696H series, a groundbreaking family of MKP DC-link film capacitors. These components are meticulously engineered to meet the rigorous demands of power converters leveraging Silicon Carbide (SiC) technology, specifically targeting the higher switching frequencies and faster voltage transitions that characterize these advanced semiconductor materials.
The launch marks a crucial step forward in enabling more compact, efficient, and reliable power conversion systems across various industrial and automotive applications. The B25696H series offers a comprehensive range of capacitance values, spanning from 47 µF to an impressive 1280 µF, coupled with rated DC voltages from 900 V to 2,000 V. This versatility positions the series as a robust solution for next-generation energy infrastructure.
Addressing the Core Challenges of SiC Power Conversion
Silicon Carbide (SiC) semiconductors are revolutionizing power electronics by offering substantial advantages over traditional silicon-based Insulated Gate Bipolar Transistors (IGBTs). SiC devices can switch at significantly higher frequencies and achieve much faster voltage transition rates (dv/dt). While these characteristics enable greater power density and efficiency, they also introduce specific challenges, particularly concerning the performance of DC-link film capacitors.
One of the primary issues arising from rapid switching is voltage overshoot at turn-off. In such high-speed scenarios, the parasitic inductance inherent in the DC-link capacitor becomes the dominant source of this overshoot. Excessive voltage overshoot can lead to increased stress on semiconductor switches, potentially reducing their lifespan and overall system reliability. TDK’s new series directly addresses this by minimizing parasitic effects.
Engineered for Optimal Performance: Ultra-Low ESL and ESR
The B25696H series distinguishes itself through an innovative internal busbar configuration. This design meticulously distributes current uniformly across the capacitor windings, a critical factor in achieving exceptionally low Equivalent Series Inductance (ESL). With ESL values as low as 30 nH, these DC-link film capacitors significantly mitigate voltage overshoot, thereby enhancing the stability and longevity of SiC-based power converters.
Equally vital for high-frequency operation is the Equivalent Series Resistance (ESR). The new TDK capacitors boast an impressive ESR of 0.8 mΩ at 10 kHz, maintaining excellent stability even up to 100 kHz. This low ESR is crucial for accurate loss budgeting, ensuring that minimal energy is wasted as heat within the capacitor itself. Consequently, this contributes to the overall efficiency and thermal management effectiveness of the power converter system, especially at the elevated switching frequencies that SiC technology enables.
Robust Ripple Current Capability and Thermal Stability
Beyond low ESL and ESR, the B25696H series exhibits a formidable ripple current capability, reaching up to 91 A at an ambient temperature of 60° C and a frequency of 10 kHz. Ripple current is a significant metric in DC-link film capacitors, indicating their ability to handle the pulsating currents generated during the switching cycles without excessive heating or degradation. High ripple current capability is essential for sustained operation in demanding power applications, ensuring the capacitor can effectively smooth the DC voltage without compromising its structural or electrical integrity.
The robust thermal performance and efficient handling of ripple currents directly translate to greater system reliability and a longer operational lifespan. This makes the B25696H series particularly well-suited for applications where continuous high-power delivery and stringent reliability standards are paramount.
Versatile Applications in Emerging Energy Sectors
The strategic design and advanced characteristics of these new DC-link film capacitors make them ideal for a diverse array of high-growth applications:
- Energy Storage Systems: In battery energy storage systems (BESS) and other grid-scale storage solutions, efficient power conversion is critical for charging and discharging cycles. The B25696H series supports high-power bidirectional converters, ensuring minimal energy loss and extended system life.
- Traction Drives: The rapidly expanding electric vehicle (EV) market relies heavily on efficient traction inverters. These capacitors are perfectly suited for EV powertrains, where high power density, reliability, and thermal stability are non-negotiable for electric buses, trucks, and passenger vehicles.
- Solid-State Transformers: As smart grids evolve, solid-state transformers are replacing traditional heavy, oil-filled transformers. TDK’s DC-link film capacitors enable the high-frequency switching and power conversion necessary for these advanced grid components, improving efficiency and reducing footprint.
- Renewable Energy Inverters: Solar (PV) and wind energy systems require robust inverters to convert DC power from renewable sources into grid-compatible AC power. The B25696H series enhances the performance and reliability of these inverters, maximizing energy harvest and grid stability.
The ability of these capacitors to operate reliably across a wide voltage range (900 V to 2,000 V) further underscores their versatility, allowing them to be integrated into various power architectures encountered in these critical sectors.
Construction, Reliability, and Extended Lifespan

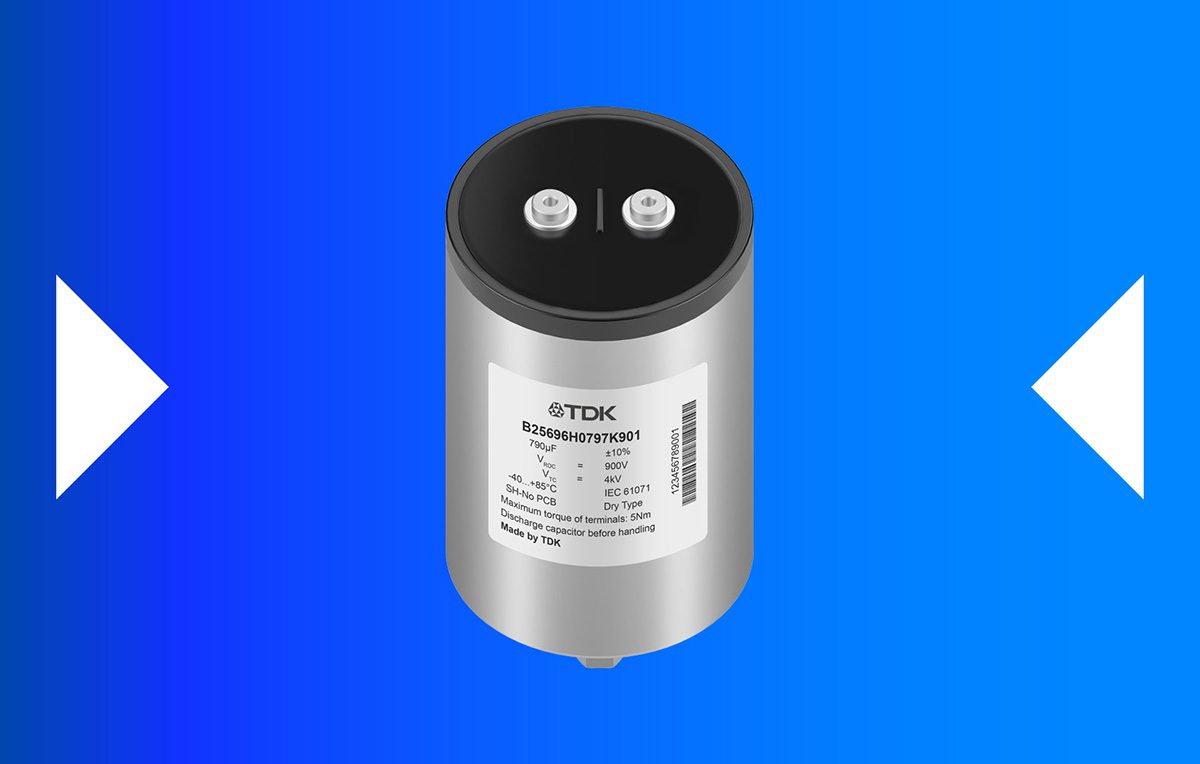

The TDK B25696H series features cylindrical aluminum-cased units, a design choice that offers excellent mechanical stability and efficient heat dissipation. At the heart of these capacitors is a metallized polypropylene dielectric. This material is renowned for its high breakdown strength, low dielectric losses, and excellent capacitance stability over temperature and frequency variations.
A key reliability feature of these DC-link film capacitors is their self-healing property. In the event of a localized dielectric breakdown, the metallized electrodes vaporize around the fault, effectively isolating the defect and preventing a catastrophic short circuit. This self-healing mechanism significantly extends the operational lifespan of the capacitor, making it more resilient to overvoltage conditions and partial discharges.
Physical integration into systems is facilitated by two available diameters—85 mm and 100 mm—along with robust M6 screw terminals for secure electrical connections and an M12 mounting bolt for stable mechanical fastening. The operational temperature range is specified from −40° C to +85° C hotspot, highlighting their suitability for deployment in diverse and often harsh environmental conditions, from extreme cold to elevated operational temperatures within enclosed systems.
TDK has established a baseline lifetime of 100,000 hours (approximately 11.4 years) when operating at 75° C and rated voltage. This impressive longevity can be further extended to an exceptional 200,000 hours through strategic voltage and temperature derating, offering design engineers significant flexibility in optimizing system life and reliability based on specific application profiles.
Empowering Engineers with Advanced Simulation Tools
Recognizing the complexities of thermal management and lifetime estimation in high-power applications, TDK provides valuable support to design engineers through its free online CapThermal simulation tool. This sophisticated utility allows engineers to accurately model the thermal behavior of the DC-link film capacitors and estimate their operational lifetime under various application-specific conditions.
The CapThermal tool plays a crucial role in the design process by enabling precise thermal analysis, helping engineers identify potential hotspots, and optimize cooling strategies. This proactive approach minimizes design risks, reduces development cycles, and ensures that the capacitors are integrated in a manner that maximizes their performance and durability throughout the product’s intended lifespan. Such support underscores TDK’s commitment to not only producing high-quality components but also facilitating their effective implementation in advanced power systems.
Driving the Future of High-Efficiency Power
The introduction of TDK’s B25696H series of DC-link film capacitors represents a vital advancement in the ongoing evolution of power electronics, particularly in the realm of SiC technology. By effectively mitigating critical challenges like voltage overshoot and ensuring high efficiency through ultra-low parasitic elements, these capacitors are poised to accelerate the adoption of SiC-based power converters in a wide array of high-demand applications.
As industries continue to push for greater energy efficiency, higher power densities, and enhanced reliability in systems ranging from electric vehicles to renewable energy infrastructure, the role of specialized, high-performance components like the B25696H series becomes increasingly indispensable. TDK’s commitment to innovation in DC-link film capacitors underscores its position as a key enabler for the next generation of sustainable and high-performance power solutions globally.
Frequently Asked Questions (FAQs)
What are DC-link film capacitors used for in power converters?
DC-link film capacitors are critical components in power converters, primarily used to stabilize the DC voltage bus. They filter ripple currents, store energy during switching cycles, and help manage voltage fluctuations. This stabilization is essential for the smooth and efficient operation of power semiconductor switches, particularly in high-frequency applications like those employing SiC technology.
How does SiC technology impact the requirements for DC-link film capacitors?
SiC (Silicon Carbide) technology enables significantly higher switching frequencies and faster voltage transitions (dv/dt) compared to traditional silicon IGBTs. This speed creates greater demands on DC-link film capacitors, requiring them to have exceptionally low parasitic inductance (ESL) to minimize voltage overshoot and low Equivalent Series Resistance (ESR) to manage losses at high frequencies, ensuring efficient and reliable operation.
What specific features of the TDK B25696H series address SiC challenges?
The TDK B25696H series features an internal busbar configuration, leading to ultra-low ESL as low as 30 nH, which effectively reduces voltage overshoot. It also offers an ESR of 0.8 mΩ at 10 kHz, stable up to 100 kHz, crucial for efficient loss budgeting. These combined attributes allow the capacitors to perform optimally in the demanding high-frequency environment of SiC power converters.
What is the importance of low ESL and ESR in these capacitors?
Low Equivalent Series Inductance (ESL) is critical to prevent excessive voltage overshoot during fast switching, which can damage SiC devices. Low Equivalent Series Resistance (ESR) minimizes power losses due to internal heating, improving overall system efficiency and reducing thermal stress on the capacitor. Both factors are vital for the reliability and performance of DC-link film capacitors in high-frequency applications.
What applications benefit most from TDK’s new DC-link film capacitors?
The TDK B25696H series is ideally suited for applications requiring high efficiency and reliability in power conversion. Key areas include energy storage systems, traction drives in electric vehicles (EVs), solid-state transformers for smart grids, and inverters for renewable energy sources like solar and wind power. These industries demand robust components that can handle high power and challenging operating conditions.
What is the role of the metallized polypropylene dielectric with self-healing properties?
The metallized polypropylene dielectric offers high breakdown strength and low losses, contributing to the capacitor’s electrical efficiency. Its self-healing property is a crucial reliability feature: in case of a localized electrical breakdown, the metallization around the fault vaporizes, isolating the defect and preventing a short circuit. This extends the capacitor’s operational life and enhances system safety and robustness.
How does TDK support engineers in integrating these capacitors?
TDK offers a free online CapThermal simulation tool designed to assist engineers. This tool allows for precise modeling of the thermal behavior of the DC-link film capacitors under various application-specific conditions. It also helps estimate their operational lifetime, enabling engineers to optimize designs, predict performance, and ensure reliable integration into power converter systems without extensive physical prototyping.
