The United States is on the cusp of a significant transformation in electric vehicle (EV) charging technology. Alpitronic, a prominent Italian charging hardware provider, has initiated testing of its groundbreaking HYC1000 megawatt chargers at its North American headquarters in Charlotte, North Carolina. These advanced units boast the capability to deliver an unprecedented 1,000 kilowatts (kW) of power to a single port for heavy-duty semi-trucks, and up to 600 kW for passenger electric vehicles.
This development marks a substantial leap beyond the current charging capabilities of most EVs available in the U.S. market, presenting both immense opportunities and immediate challenges for the industry. The deployment of such high-power systems holds the potential to drastically reduce charging times, making EV ownership more convenient and directly addressing one of the primary bottlenecks in widespread electric vehicle adoption.
Key Takeaways
- Alpitronic’s HYC1000 megawatt EV charging stations are now being tested in Charlotte, North Carolina.
- These chargers can deliver up to 1,000 kW for semi-trucks and 600 kW for passenger EVs, significantly surpassing current vehicle capabilities.
- The technology aims to shorten charging times to seven minutes or less for a 10-80% charge, mirroring the speed of conventional refueling.
- Alpitronic has forged key partnerships with major charging networks, enhancing its market presence across the U.S.
- The HYC1000 features modular, distributed power delivery and supports NACS, CCS, and the Megawatt Charging Standard (MCS).
- While the infrastructure is advancing rapidly, automakers face the challenge of designing EVs capable of accepting such high megawatt EV charging rates.
Alpitronic’s HYC1000: A Technical Leap in Megawatt EV Charging
Alpitronic’s new HYC1000 chargers are engineered for both efficiency and versatility. The megawatt dispensers are characterized by their sleek, tall, rectangular design, with each unit accommodating two charging cables. These stations are highly configurable, supporting Tesla-style NACS (North American Charging Standard) cables, CCS (Combined Charging System) cables, and the robust Megawatt Charging Standard (MCS) cable specifically designed for heavy-duty electric trucks.
Beyond their impressive power output, these chargers incorporate several user-centric features. They include swinging arms at the top, ingeniously designed to bear the weight of the cables, thereby improving handling for users. A vehicle-facing touchscreen provides real-time charging details, and an integrated card reader streamlines payment processes. Each tower is equipped with two plugs, both capable of simultaneously delivering up to 600 amps and 1,000 volts, equating to a substantial 600 kW of power per plug.
Bridging the Gap: Charger Capability vs. Vehicle Readiness
The introduction of Alpitronic’s HYC1000 marks a significant moment in the evolution of megawatt EV charging. These systems, designed to push the boundaries of current fast-charging technology, can theoretically charge EV batteries from 10% to 80% in approximately seven minutes or less. This speed is critical for achieving a charging experience comparable to refueling a gasoline-powered vehicle, a key factor in accelerating electric vehicle adoption.
Current Landscape of Fast Charging
Presently, the fastest EV chargers operating in the U.S., such as Tesla’s V4 Superchargers and the Gravity Charging Center in New York City, offer peak outputs of up to 500 kW. However, even these capabilities largely outpace the current acceptance rates of the most advanced passenger EVs. Vehicles like the Porsche Cayenne Electric, BMW iX3, and Lucid Gravity typically top out at around 400 kW of charging power. This discrepancy highlights a crucial challenge: while megawatt EV charging infrastructure is rapidly advancing, the next generation of electric vehicles must evolve to fully utilize these higher power levels.
The Promise of Ultra-Fast Recharging
Despite the current gap in vehicle readiness, the emergence of megawatt EV charging signals a transformative shift. The ability to dramatically shorten charging stops is expected to significantly mitigate range anxiety, a common concern among potential EV buyers. Such ultra-fast charging technology could facilitate longer journeys, particularly for heavy-duty trucks, by minimizing downtime and maximizing operational efficiency. This technological push is poised to redefine expectations for electric vehicle performance and convenience across both consumer and commercial sectors.
Strategic Deployment and Network Expansion
Alpitronic has rapidly established itself as a pivotal player in the North American charging infrastructure landscape. In a relatively short period, the company has secured vital partnerships with several leading charging networks. These collaborations include Ionna, Walmart, Mercedes-Benz High Power Charging, Electrify America, and BP Pulse.
Alpitronic’s Growing Footprint
These strategic alliances have already resulted in the nationwide deployment of hundreds of Alpitronic’s HYC400 chargers, with expansion continuing at a robust pace. The successful integration of these earlier models has paved the way for the advanced HYC1000, solidifying Alpitronic’s position as a key enabler of advanced EV charging technology. The company’s continued growth reflects the increasing demand for reliable and high-capacity charging solutions across the continent.
Intelligent Power Distribution for Optimal Charging

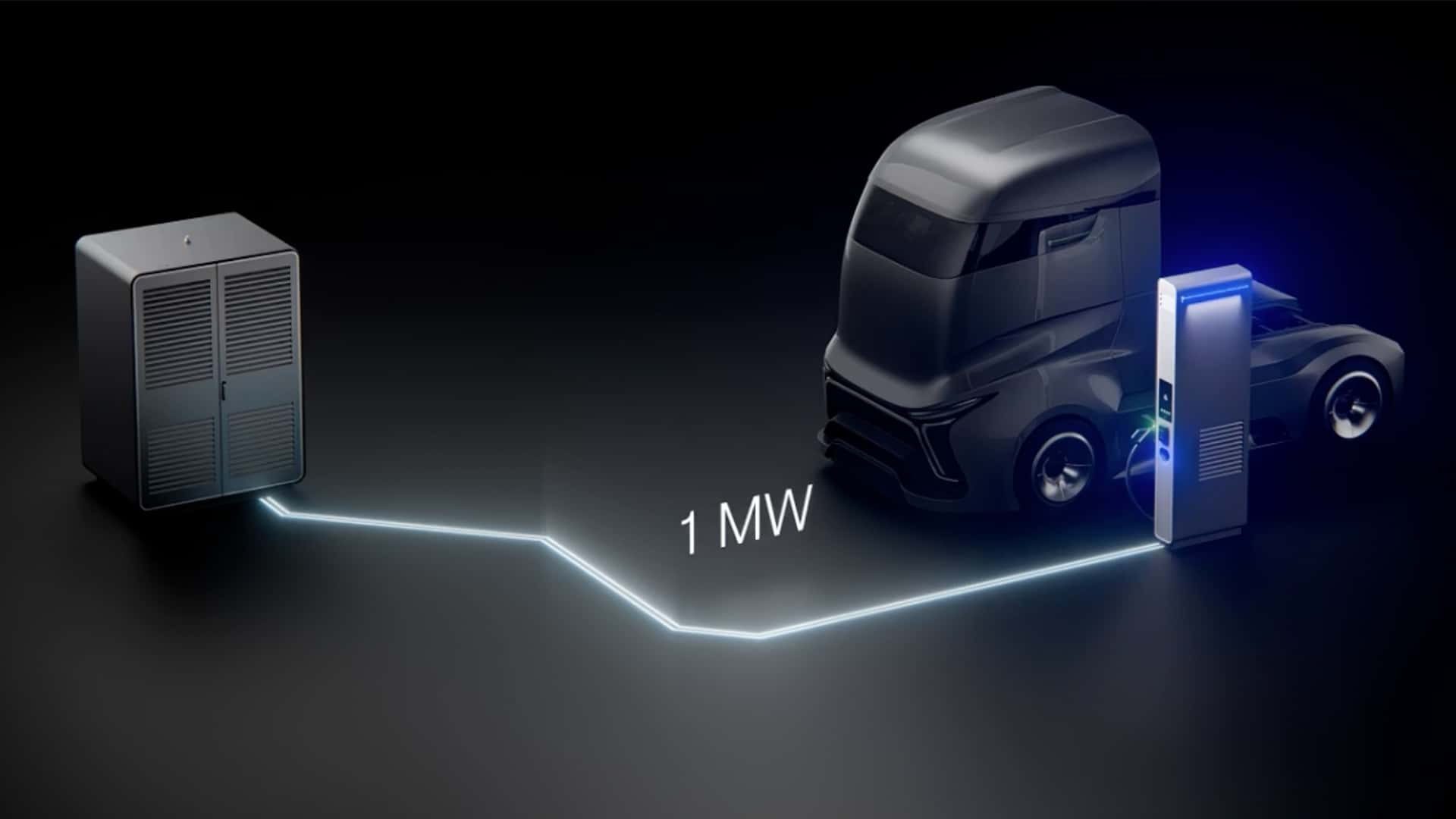

A notable innovation within the HYC1000 system is its modular and distributed power delivery architecture. The main cabinet houses eight 125 kW silicon carbide power modules, each capable of powering an individual charging tower. For even greater precision, each 125 kW module is further subdivided into 62.5 kW units. This intricate design allows for highly precise power distribution, dynamically matching the specific demand at each charging stall.
This smart power management system ensures that power is delivered efficiently without wasting the maximum capability of a single tower on a vehicle that cannot fully utilize it. For instance, if a Chevy Equinox EV (peaking at 150 kW) and a Hyundai Ioniq 5 (capable of up to 350 kW) are charging simultaneously at adjacent stalls, the HYC1000 can precisely allocate the required power to each. This intelligent allocation is particularly beneficial as EVs typically draw their full charging power at lower states of charge, with the power tapering off as the battery fills. While Alpitronic excels in this area, it is important to note that dynamic load balancing is also employed by other industry leaders such as Tesla, ChargePoint, and Electrify America to optimize their charging networks.
Furthermore, Alpitronic collaborated with Mercedes-AMG to develop a specialized version of the HYC1000. This collaboration resulted in a charger capable of delivering a full 1,000 kW to a passenger EV, as demonstrated by the Concept AMG GT XX, which achieved a peak of 1,041 kilowatts during a test run in Italy last year. This remarkable achievement underscores the potential for future passenger vehicles to leverage true megawatt EV charging capabilities.
The Path to Widespread Megawatt EV Charging
The rollout of megawatt EV charging technology in the U.S. signals a critical juncture for the electric vehicle industry. While heavy-duty applications are the immediate beneficiaries, with Tesla already deploying Megachargers for its Semi trucks and Kempower planning similar solutions, the trickle-down effect to passenger EVs appears increasingly probable.
Global Perspectives and Future Integration
Looking globally, countries like China are already democratizing megawatt charging within their mass-market EV segments, with manufacturers like BYD and Geely leading the charge. This global trend indicates the viability and growing necessity of ultra-fast charging for broader EV adoption. The U.S. market, spurred by innovators like Alpitronic, is now positioned to follow a similar trajectory, integrating this advanced technology into its evolving infrastructure.
Accelerating EV Adoption
The prospect of widely available megawatt EV charging promises to be a significant catalyst for accelerating electric vehicle adoption. By making the charging experience as quick and seamless as traditional gasoline refueling, these high-power systems can address long-standing consumer hesitancy. The ongoing development and deployment of robust charging solutions, combined with advancements in battery technology, are essential for realizing a fully electrified transportation future.
Frequently Asked Questions (FAQ)
What is megawatt EV charging?
Megawatt EV charging refers to electric vehicle charging systems capable of delivering power at rates of 1,000 kilowatts (1 megawatt) or more. This significantly surpasses current fast-charging speeds, drastically reducing the time required to recharge EV batteries, especially for heavy-duty vehicles and, eventually, passenger cars.
How much power can Alpitronic’s HYC1000 deliver?
Alpitronic’s HYC1000 megawatt chargers can deliver up to 1,000 kW of power to a single port for semi-trucks. For passenger EVs, these chargers are configured to provide up to 600 kW, although special versions have demonstrated over 1,000 kW for high-performance vehicles.
Are current EVs ready for megawatt charging?
Most current passenger EVs in the U.S. are not yet capable of accepting full megawatt EV charging rates. While some advanced models can handle up to 400 kW, the HYC1000’s 600 kW for passenger vehicles significantly exceeds this. Vehicle technology, particularly battery chemistry and thermal management, needs to evolve further.
What charging standards does the HYC1000 support?
The Alpitronic HYC1000 megawatt EV charging stations are highly versatile, supporting multiple industry standards. They can be configured with NACS (North American Charging Standard), CCS (Combined Charging System), and the Megawatt Charging Standard (MCS) cables, catering to a wide range of electric vehicles from passenger cars to heavy-duty trucks.
How does intelligent power distribution work in these chargers?
The HYC1000 utilizes a modular design with silicon carbide power modules that can be subdivided for precise power allocation. This allows the charger to dynamically adjust output based on each connected vehicle’s specific charging needs, ensuring optimal efficiency and preventing wasted power, particularly as a battery’s state of charge increases.
What is the impact of megawatt EV charging on electric vehicle adoption?
Megawatt EV charging is expected to be a major catalyst for electric vehicle adoption by reducing charging times to minutes, making EV ownership more convenient and comparable to traditional refueling. This will help alleviate range anxiety and improve the practicality of electric vehicles for long-distance travel and commercial operations.
