Key Takeaways:
- ROHM Semiconductor has launched the RESDxVx series, a new line of ESD protection diodes engineered for high-speed interfaces operating above 10 Gbps.
- The series addresses a critical industry challenge by combining ultra-low terminal capacitance (0.24 pF bidirectional, 0.48 pF unidirectional) with a low dynamic resistance (0.28 Ω).
- This innovative design reportedly achieves a clamping voltage approximately 40% lower than conventional competing products at equivalent capacitance levels, enhancing protection for sensitive integrated circuits (ICs).
- Automotive-qualified variants, holding AEC-Q101 certification, are specifically designed for demanding applications such as ADAS, autonomous driving cameras, surround view systems, and ECUs utilizing SerDes communication.
- Non-automotive versions extend their utility to crucial data infrastructure, including AI servers, data center switches, 5G/6G base stations, and a range of consumer interfaces like USB4, Thunderbolt 4, PCIe, HDMI, DisplayPort, and MIPI D-PHY/C-PHY.
In an era defined by accelerating data demands and increasingly sophisticated electronic systems, the need for robust protection against electrostatic discharge (ESD) has never been more critical. ROHM Semiconductor, a global leader in semiconductor innovation, has introduced its groundbreaking RESDxVx series of ESD protection diodes, precisely engineered to safeguard high-speed interfaces operating at data rates exceeding 10 Gbps. This development represents a significant stride in ensuring the reliability and integrity of advanced digital communication across vital sectors, from automotive intelligence to global data infrastructure.
The new RESDxVx series directly tackles a fundamental design challenge confronting engineers today. As data rates climb beyond the 10 Gbps threshold, even minute amounts of parasitic capacitance within protection components can lead to significant signal waveform distortion. This distortion compromises the integrity of high-speed data transmission, potentially causing errors or system instability. Traditional solutions often involved a difficult trade-off: reducing capacitance to preserve signal quality typically resulted in higher dynamic resistance, which, in turn, weakened the ESD clamping response and left downstream ICs more vulnerable to damaging overstress events. ROHM’s latest offering claims to break this long-standing dilemma.
The Escalating Demand for High-Speed Data Protection
Modern electronic systems, particularly those in automotive and data communication fields, are characterized by an insatiable appetite for speed and bandwidth. Technologies such as Advanced Driver-Assistance Systems (ADAS) and autonomous driving require vast amounts of sensor data to be processed and transmitted almost instantaneously. Similarly, the rapid expansion of AI servers, data centers, and 5G/6G communication networks relies on incredibly fast and reliable data pipelines. Each increase in data rate amplifies the vulnerability of sensitive components to electrostatic discharge events, which can cause immediate damage or latent defects that lead to premature system failure.
Protecting these critical high-speed interfaces without impeding their performance has become a paramount concern for system designers. The challenge lies in developing ESD protection solutions that offer robust clamping capabilities against transient voltages while simultaneously maintaining an extremely low parasitic capacitance. If the capacitance of the protection device is too high, it can act as a filter, attenuating the high-frequency components of the data signal and degrading signal integrity. This delicate balance is what the new RESDxVx series aims to perfect.
Overcoming the Capacitance-Resistance Trade-off
ROHM’s RESDxVx series stands out by delivering a rare combination of ultra-low terminal capacitance and low dynamic resistance. The devices achieve an impressive terminal capacitance of just 0.24 pF for bidirectional applications and 0.48 pF for unidirectional configurations. This minimal capacitance is crucial for preserving the integrity of signals transmitted at multi-gigabit speeds, preventing distortion and ensuring clean data transmission.
Simultaneously, the series boasts a remarkably low dynamic resistance of 0.28 Ω. Dynamic resistance is a critical parameter that dictates how effectively an ESD protection diode can clamp a transient overvoltage event. A lower dynamic resistance signifies a more efficient and rapid response to an ESD strike, ensuring that the voltage across the protected IC remains well within safe operating limits. ROHM reports that this synergistic combination allows the RESDxVx series to achieve a clamping voltage approximately 40% lower compared to conventional competing products that offer similar capacitance levels. This significant reduction in clamping voltage provides a superior level of protection for the increasingly sensitive and costly integrated circuits operating at the heart of high-speed digital systems.
Tailored for Automotive Excellence and Safety
The automotive sector is undergoing a profound transformation, driven by the proliferation of sophisticated electronics for safety, connectivity, and autonomy. These systems, including ADAS and autonomous driving platforms, rely heavily on high-speed data transmission for real-time sensor fusion, image processing, and vehicle control. Robust ESD protection is not just about performance; it is also a fundamental requirement for functional safety and long-term reliability in harsh automotive environments.
AEC-Q101 Certification and Specific Variants
Recognizing the stringent demands of the automotive industry, ROHM has launched specific automotive-qualified variants within the RESDxVx series. These include the RESD3V3BASAFH, RESD5V0BASAFH, RESD3V3UASAFH, and RESD5V0UASAFH. Crucially, all these components carry AEC-Q101 certification, a widely recognized standard that validates the reliability and quality of discrete semiconductor components for use in automotive applications. This certification is a testament to the devices’ ability to withstand the demanding temperature ranges, vibrations, and electrical stresses inherent in vehicle operation.

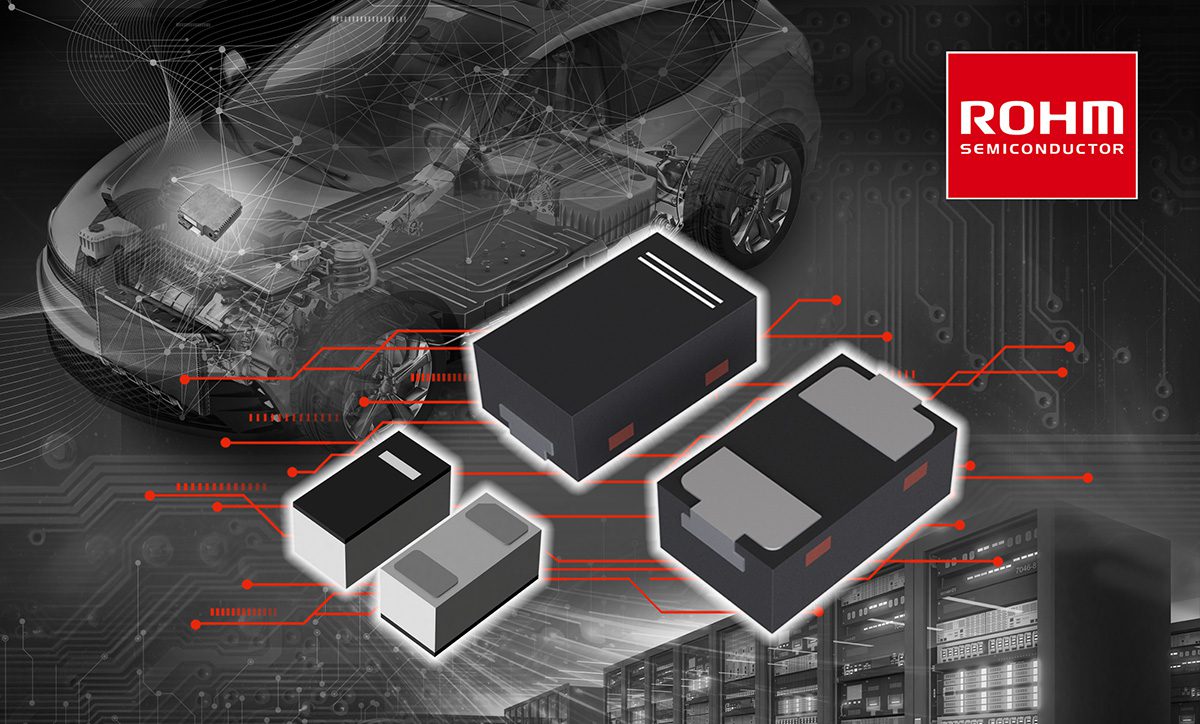

Packaged in the compact DFN1006-2W format, these ESD protection diodes are ideally suited for space-constrained automotive designs. Their target applications are diverse and critical, encompassing cameras for ADAS and autonomous driving systems, which require flawless high-speed video and data feeds; surround view systems that aggregate data from multiple cameras for a comprehensive vehicle perimeter view; and Electronic Control Units (ECUs) that increasingly utilize SerDes (Serializer/Deserializer) communication protocols for high-speed, long-distance data links within the vehicle’s network. The robust protection offered by these diodes ensures that critical automotive systems remain operational and reliable, contributing directly to vehicle safety and performance.
Extending Reach to Global Data Infrastructure
Beyond the automotive realm, the RESDxVx series addresses equally pressing needs across the broader digital landscape. The escalating volume of data generated globally necessitates powerful and resilient data infrastructure. AI servers, data center switches, and next-generation 5G/6G base stations are foundational components of this infrastructure, constantly processing and transmitting colossal amounts of information. These systems feature numerous high-speed interfaces that are vulnerable to ESD events, which can lead to costly downtime and data corruption.
Versatility in Non-Automotive Applications
For these demanding non-automotive applications, ROHM offers variants of the RESDxVx series in the DSN0603-2J package. This package is optimized for environments where miniaturization and high performance are paramount. The diodes are designed to protect a wide array of consumer and enterprise interfaces, including the latest iterations of USB4, Thunderbolt 4, PCIe (PCI Express), HDMI, DisplayPort, and MIPI D-PHY/C-PHY. These interfaces are ubiquitous in high-performance computing, advanced multimedia devices, and mobile communication, all of which rely on unimpeded high-speed data flow. By safeguarding these critical data pathways, the RESDxVx series contributes to the overall stability and longevity of sophisticated electronic devices, enhancing user experience and system uptime.
Enhancing System Reliability and Design Flexibility
The introduction of the RESDxVx series offers significant advantages to design engineers. By providing a superior blend of low capacitance and effective clamping, these ESD protection diodes simplify the design process for high-speed circuits. Engineers no longer face the severe trade-offs that previously complicated component selection for robust signal integrity. The ability to achieve a 40% lower clamping voltage at equivalent capacitance levels means that sensitive downstream ICs receive enhanced protection, reducing the risk of failure due to electrostatic discharge and ultimately improving the overall reliability of electronic systems.
Furthermore, the availability of both bidirectional and unidirectional variants, along with different package options (DFN1006-2W and DSN0603-2J), provides engineers with greater flexibility to integrate these solutions into a diverse range of applications. This adaptability is key in an industry where space constraints are common and specific interface requirements vary widely. ROHM’s commitment to delivering high-performance, application-specific solutions underscores its role in advancing semiconductor technology to meet the demands of an increasingly interconnected and data-intensive world.
The Future of High-Speed Interface Protection
As technological advancements continue to push the boundaries of data transmission speeds, the role of robust ESD protection diodes will only grow in importance. The RESDxVx series from ROHM Semiconductor represents a forward-looking solution, addressing current and anticipated challenges in protecting critical high-speed interfaces. By effectively managing the delicate balance between signal integrity and overvoltage protection, these new ESD protection diodes are poised to become essential components in the development of next-generation automotive electronics, advanced data center infrastructure, and sophisticated consumer devices, ensuring their reliability, performance, and longevity in an increasingly electric and digital future.
Frequently Asked Questions (FAQ)
What is the primary purpose of ROHM’s new RESDxVx series?
The RESDxVx series comprises ESD protection diodes primarily designed to safeguard high-speed interfaces operating at data rates exceeding 10 Gbps. Their main goal is to protect sensitive integrated circuits from electrostatic discharge events while maintaining optimal signal integrity, crucial for modern digital communication systems.
What key specifications make these ESD protection diodes stand out?
These diodes feature an ultra-low terminal capacitance of 0.24 pF (bidirectional) and 0.48 pF (unidirectional), coupled with a low dynamic resistance of 0.28 Ω. This combination is engineered to break the traditional trade-off between capacitance and clamping performance, ensuring superior protection.
How do these new diodes improve protection compared to conventional products?
ROHM reports that the RESDxVx series achieves a clamping voltage approximately 40% lower than conventional competing products at equivalent capacitance levels. This significantly enhanced clamping capability provides a more effective shield for downstream ICs against damaging overstress, improving overall system reliability.
Which automotive applications are targeted by the RESDxVx series?
The automotive-qualified variants are designed for critical systems such as ADAS (Advanced Driver-Assistance Systems) and autonomous driving cameras, surround view systems, and Electronic Control Units (ECUs) that rely on high-speed SerDes communication. These components are AEC-Q101 certified for automotive reliability.
What non-automotive applications benefit from these ESD protection diodes?
Beyond automotive, the series supports AI servers, data center switches, and 5G/6G base stations. They also protect consumer interfaces like USB4, Thunderbolt 4, PCIe, HDMI, DisplayPort, and MIPI D-PHY/C-PHY, ensuring high-speed data integrity across a broad spectrum of electronic devices.
Why is low capacitance important for high-speed interfaces?
At data rates above 10 Gbps, even minimal parasitic capacitance can distort high-frequency signal waveforms. Low capacitance in ESD protection diodes is essential to minimize this signal degradation, preserving the integrity and quality of high-speed data transmission without causing performance bottlenecks.
What role does dynamic resistance play in ESD protection?
Dynamic resistance measures the diode’s resistance during an ESD event. A lower dynamic resistance indicates that the diode can clamp transient voltages more quickly and effectively, diverting the harmful current away from the protected IC and ensuring that the voltage at the device’s pins remains below its damage threshold.
Are there different package options available for the RESDxVx series?
Yes, the automotive-qualified variants are available in DFN1006-2W packages, which are optimized for robust automotive environments. Non-automotive variants come in the compact DSN0603-2J package, catering to applications where miniaturization and space efficiency are key design considerations.
